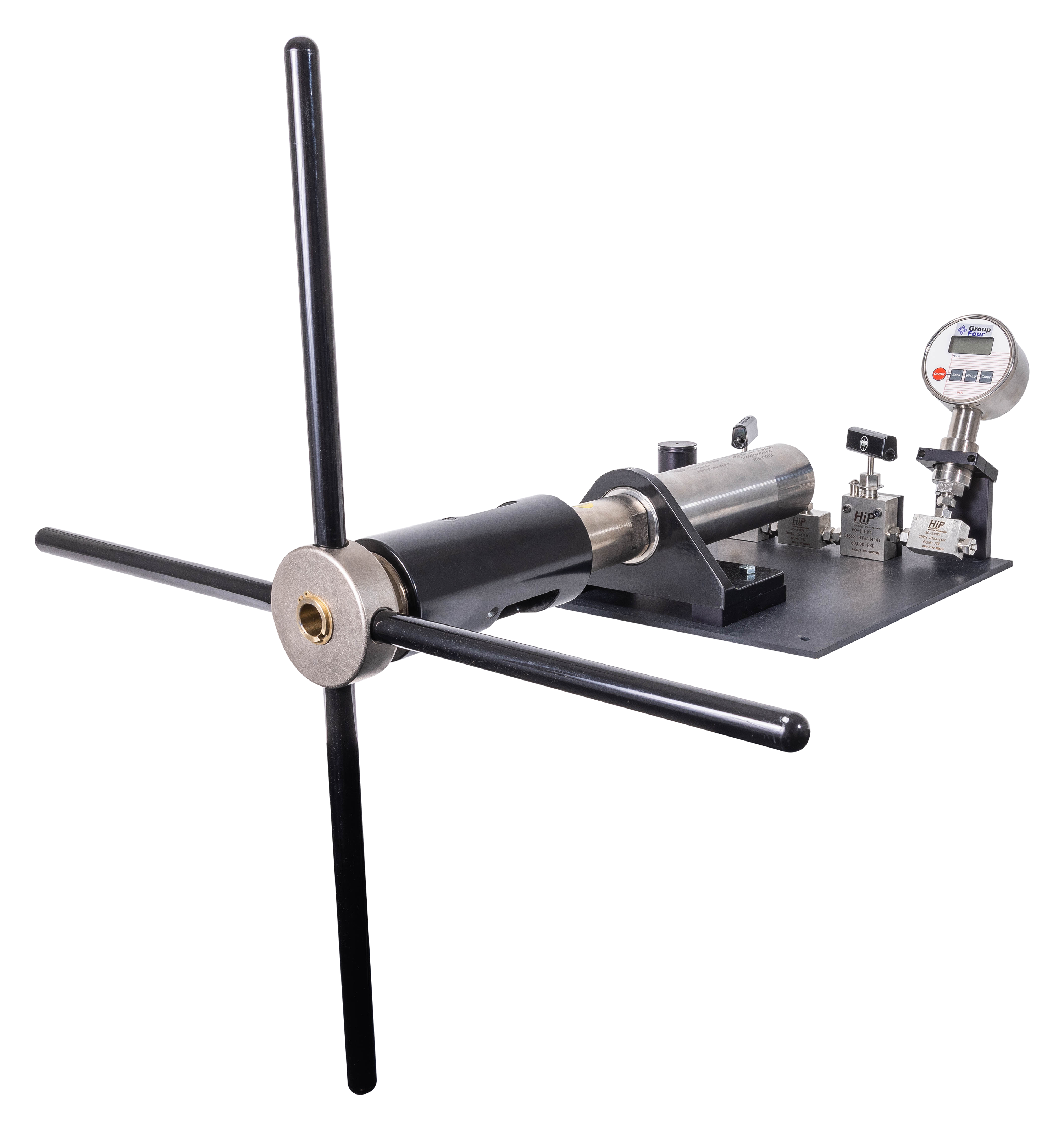

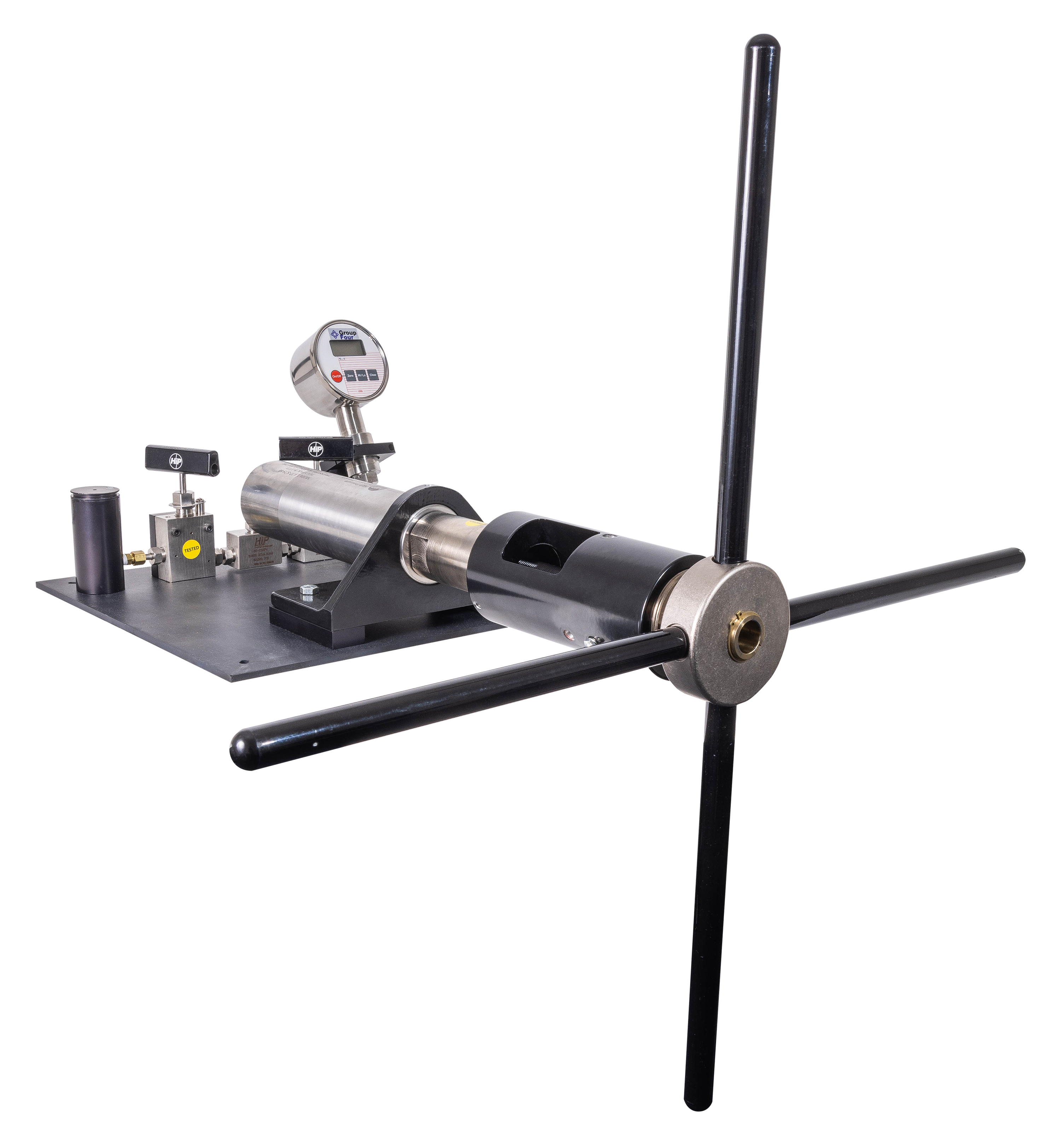

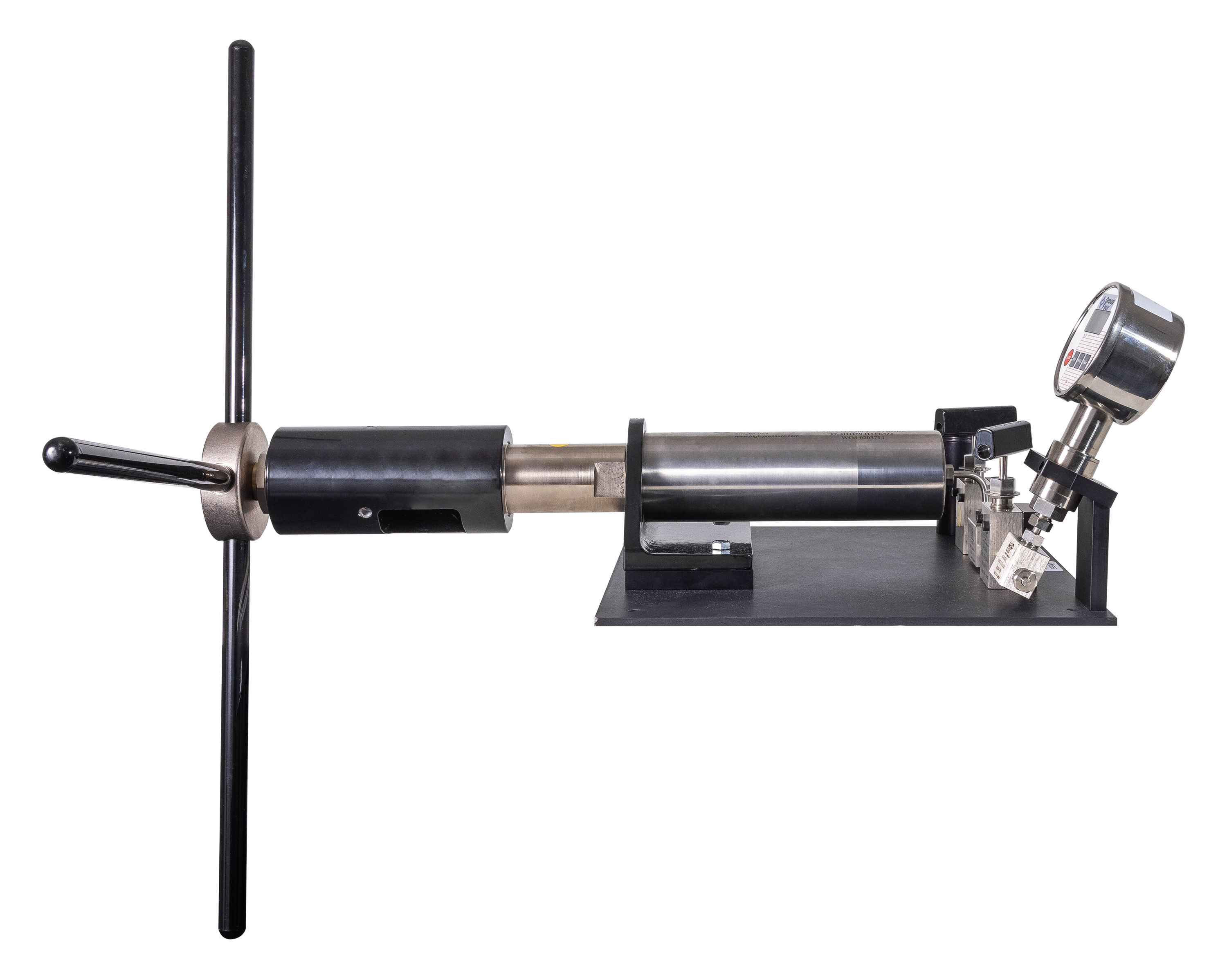

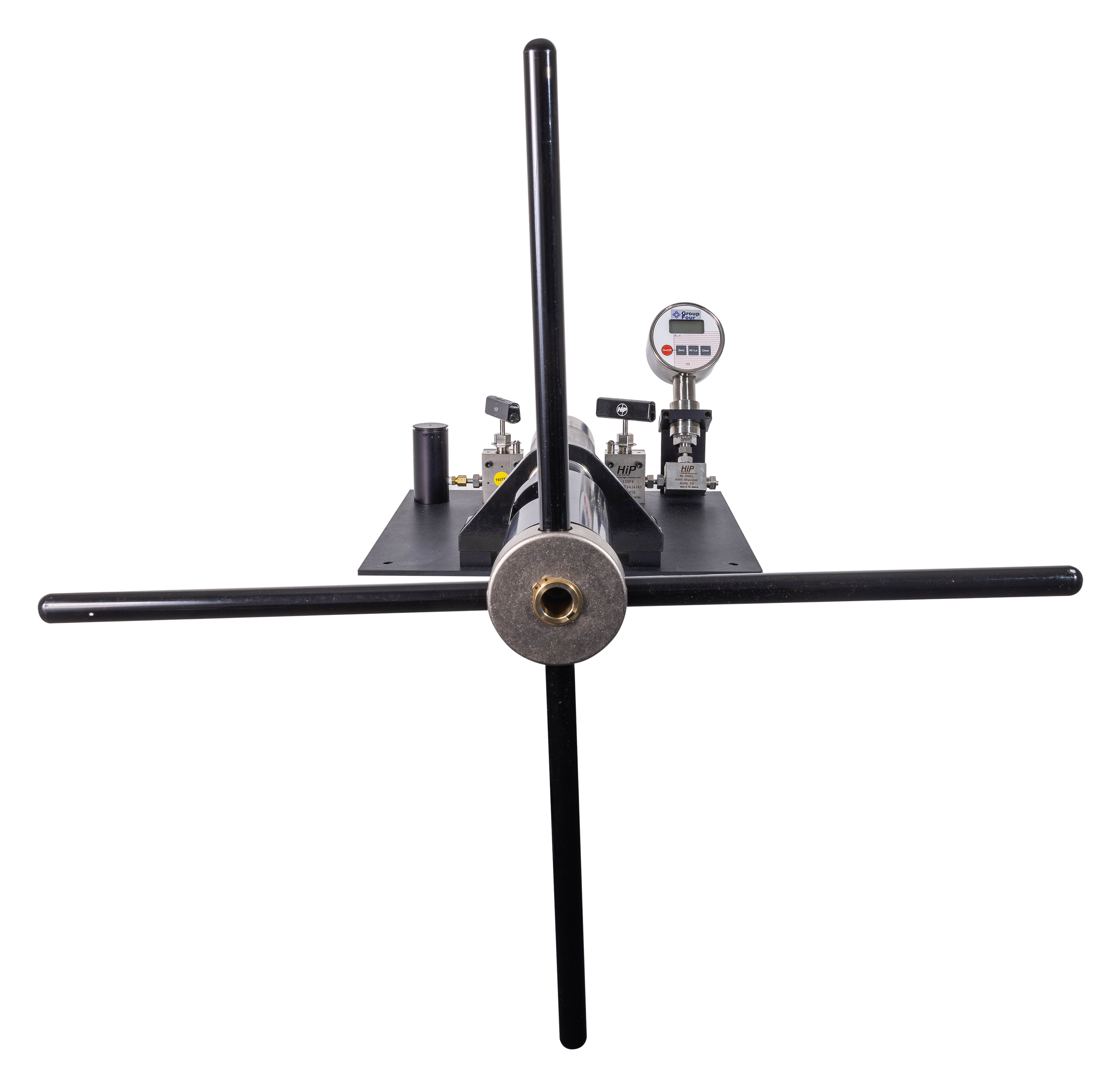

Overview of Manual Pressure Generator
Hydrostatic pressure is generated through a manual pump connected to the HP Cell by a flexible tubing. The pump includes a reservoir for storing the liquid (water or ethanol), and valves for allowing the pressurizing liquid to circulate thorough the circuitry. A pressure gauge indicates the value of the pressure. All of the components are conveniently mounted on a single baseplate which can be located next to the HP Cell.
Product Specifications for Manual Pressure Generator
Gauge
- Up to 600 MPa
Reservoir Volume
- 116 ml
Generator Volume
- 10 ml
Tubing
- 1/8" diameter, flexible up to 415 MPa
