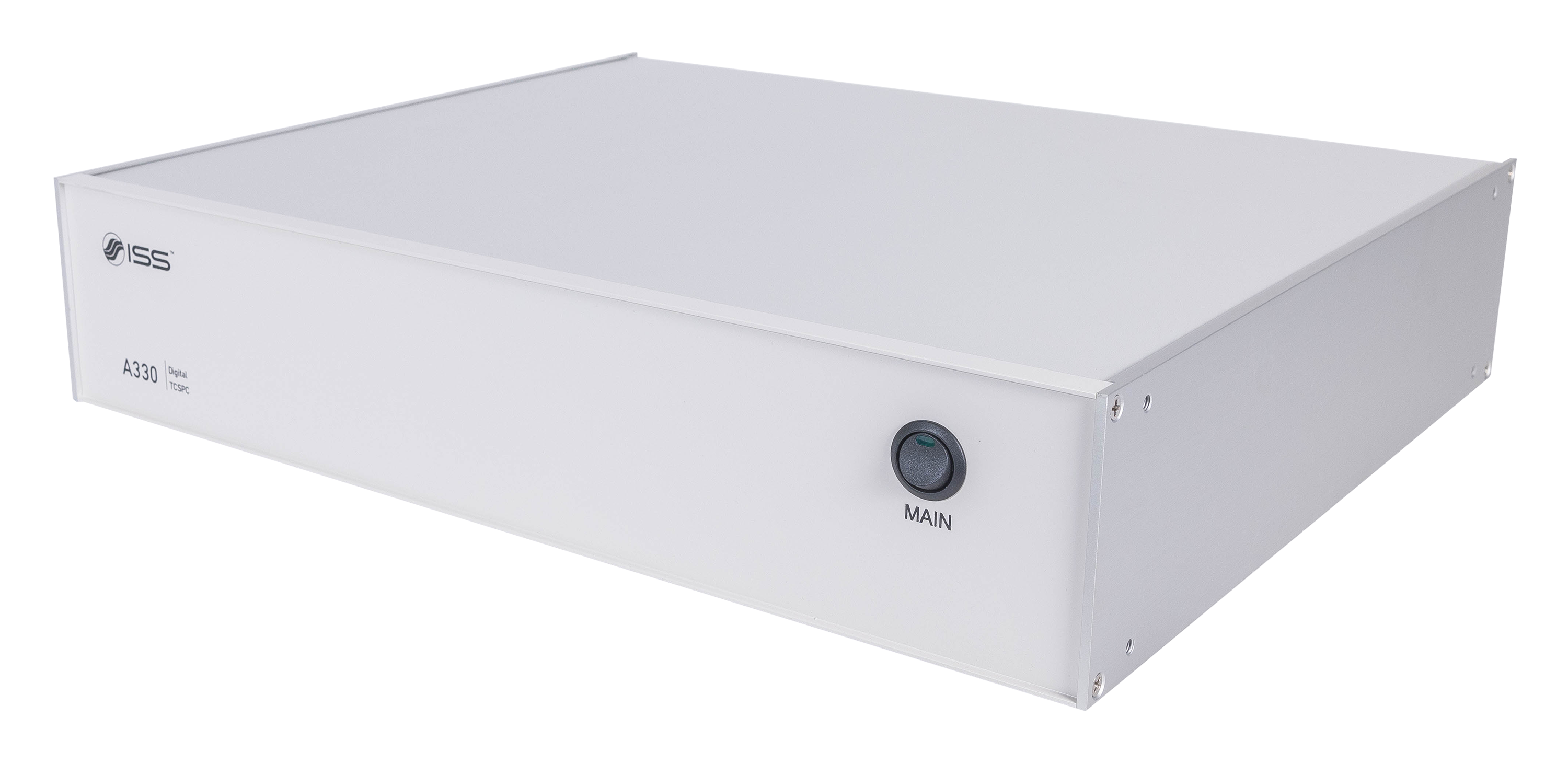

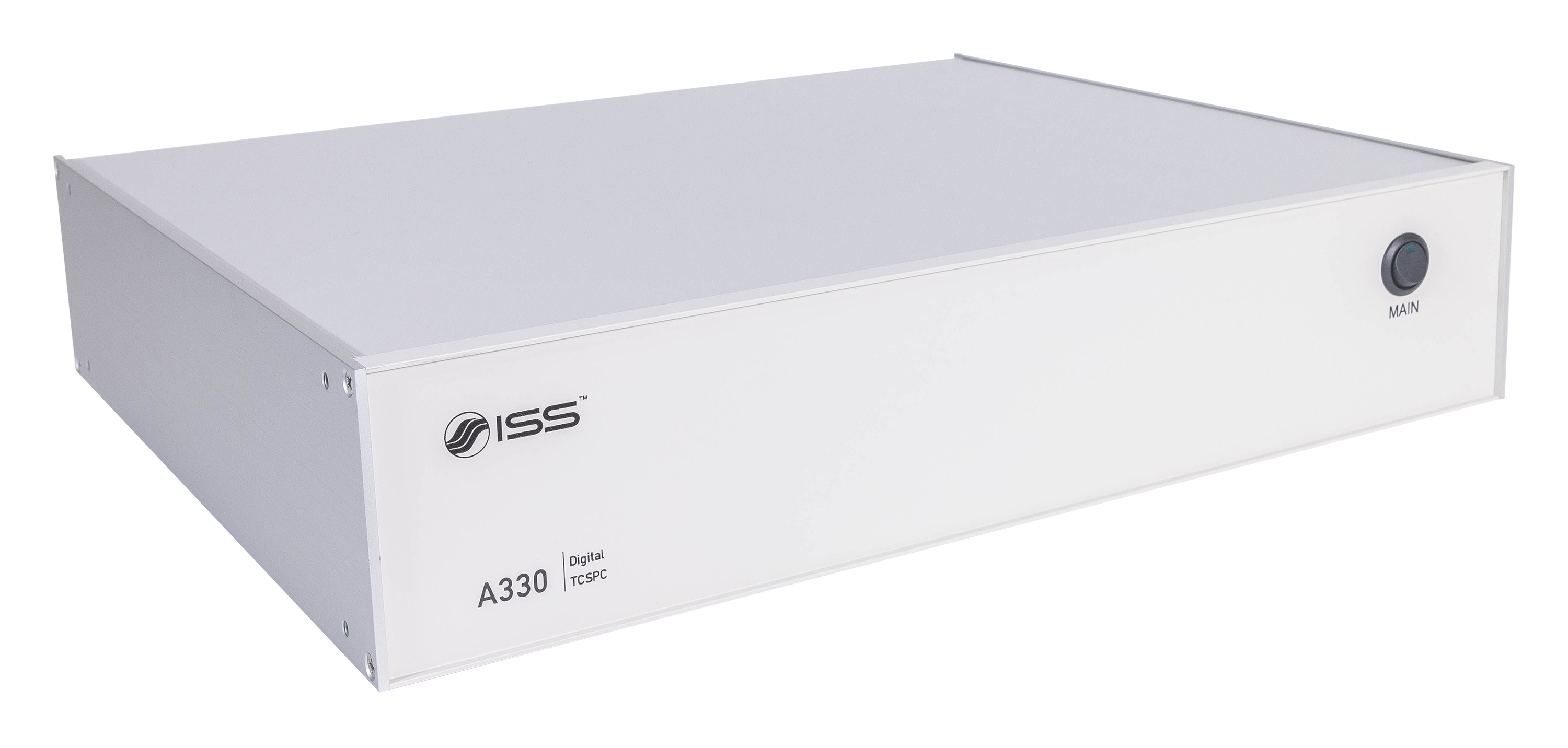

Overview of SWISS Digital TCSPC
Digital TCSPC is designed for fast FLIM data acquisition and with the unique capability to cover the range from picoseconds to seconds with a time bin of 1 picosecond. Featuring 8 independent input channels, the unit records time-tagged time-resolved (TTTR) events in streaming mode.
Two versions of the module are available: the SWISS-2 unit allows for maximum data transfer rate of 8.5 M tags/second while the SWISS-3 reaches 65 M tags/second; dead time is 6 ns and 2 ns respectively. Decay times from the picosecond to the second time scales can be resolved (FLIM and PLIM). The card is supported by drivers in Windows 10, 64-bit, operating systems. The connection to the computer is through USB protocol.
Features
- 8-channel simultaneous acquisition
- Decay rates range: from 100 ps to s
- Dead time: 6 ns and 2 ns (model dependent)
- Trigger input from external source
- Pixel, Line and Frame CLK synchronization
- USB communication
- Drivers for Windows 10, 64-bit, OS
Applications
- Time-Tagged-Phase-Resolved lifetime measurements
- Single-wavelength and multi-wavelength FLIM/PLIM
- Confocal images
- Anisotropy measurements (steady-state and time-resolved)
- FCS, FCCS, PCH
- Scanning FCS, RICS, N&B
- Stoichiometry
- Single Molecule FRET
- PIE measurements
- Antibunching
Product Specifications for SWISS Digital TCSPC
Operation
| Feature | SWISS-2 | SWISS-3 |
|---|---|---|
| No. of Input Channels | 8 | 4 |
| Minimum time bin width (ps) | 1 | 1 |
| Time resolution, RMS jitter (ps) | 34 | 10 |
| Dead Time (ns) | 6 | 2 |
| Decay times measurement | PLIM and FLIM: from 10 ps to ≈ 3 months | |
| Synchronization w/ scanning devices | LINE/FRAME/PIXEL Scan | |
Data Acquisition (Photon Mode or Time-Tagged Time Resolved)
| Feature | SWISS-2 | SWISS-3 |
|---|---|---|
| Data Transfer Rate (M tags/s) | 8.5 | 65 |
| Burst Memory (M tags) | 8 | 512 |
| Max sync rate (MHz) | 167 | 500 |
Input Signals
| Feature | SWISS-2 | SWISS-3 |
|---|---|---|
| Input impedance (Ω) | 50 | 50 |
| No. of CFD inputs | 2 standard, up to 4 | 2 standard, up to 4 |
| Min CFD Input Signal (V) | 30 mV (amplification stages are included) | |
| Non-CFD Input Signal Range (V) | 0.3 | ± 3 |
| Non-CFD Trigger Level Range (V) | 0 - 2.5 | ± 2.5 |
| Non-CFD Min Pulse Height (mV) | 100 | 100 |
| Non-CFD Min Pulse Width (ns) | 1 | 0.5 |
Mechanical and Electrical
| Feature | SWISS-2 | SWISS-3 |
|---|---|---|

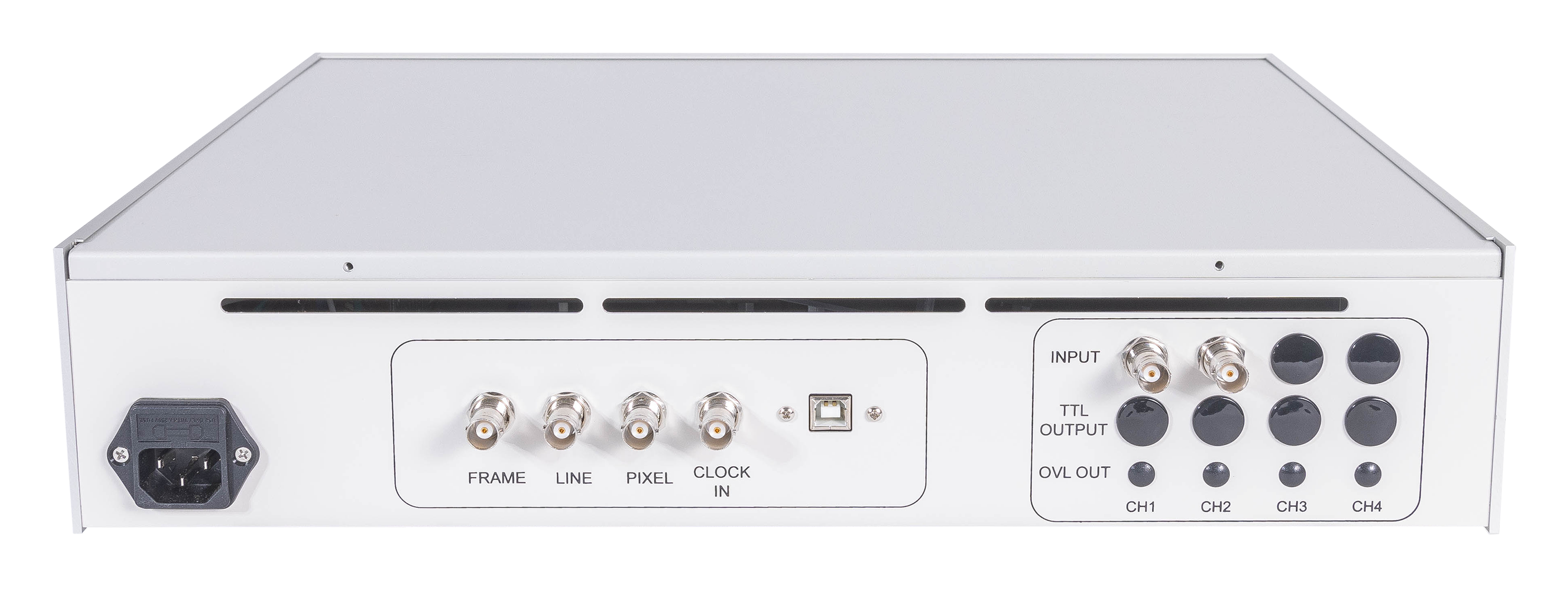

| Input Connectors | BNC | BNC |
| Data Interface | USB2 | USB3 |
| Power | 120/240 V, 50/60 Hz, 40 W | |
| Dimensions (cm) | 42.5 (W) x 36 (D) x 10 (H) | |
