HyPD Series

Contact Us To discuss our technology further, request a quote, or arrange for an instrument demonstration.

Overview of HyPD Series

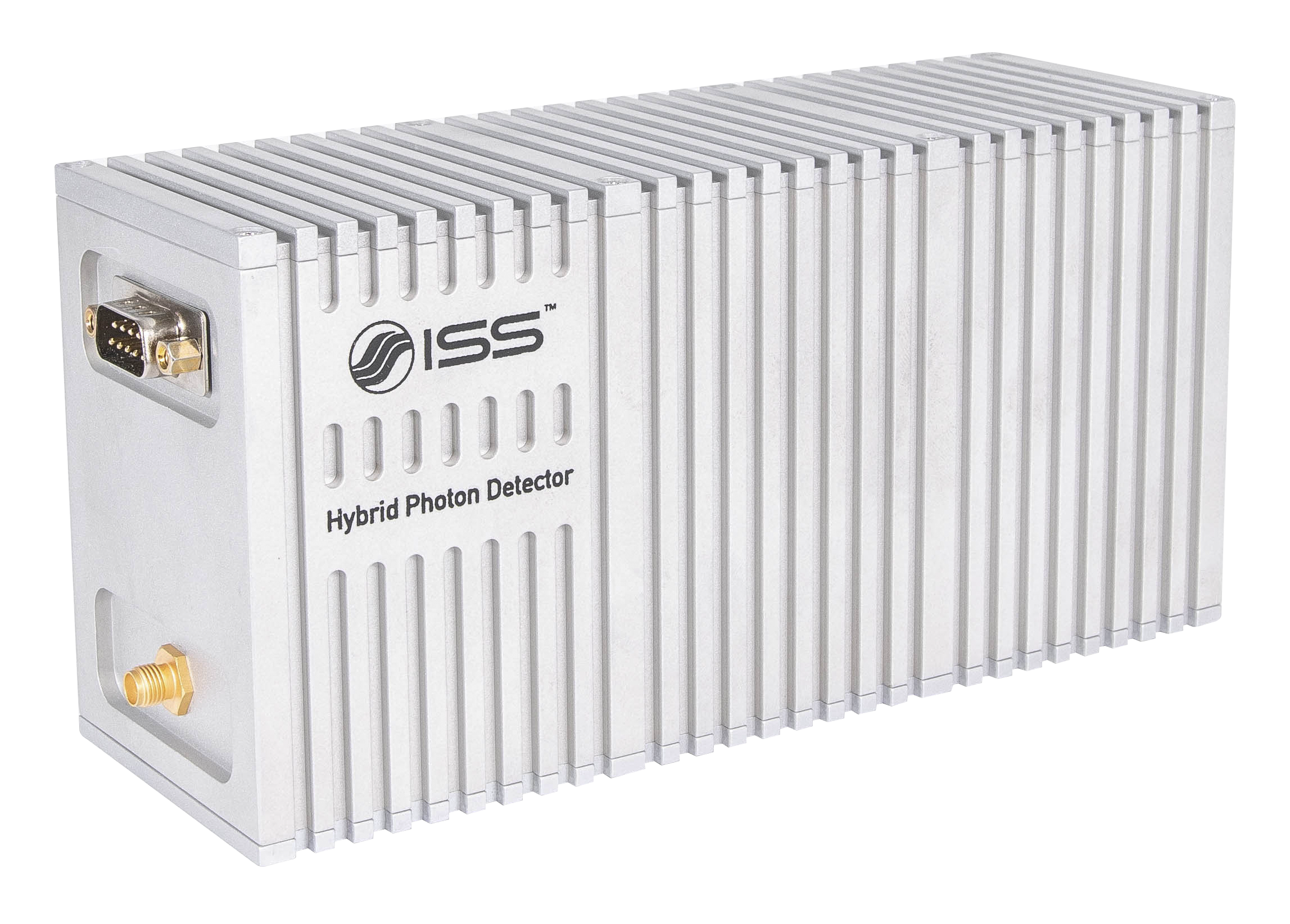

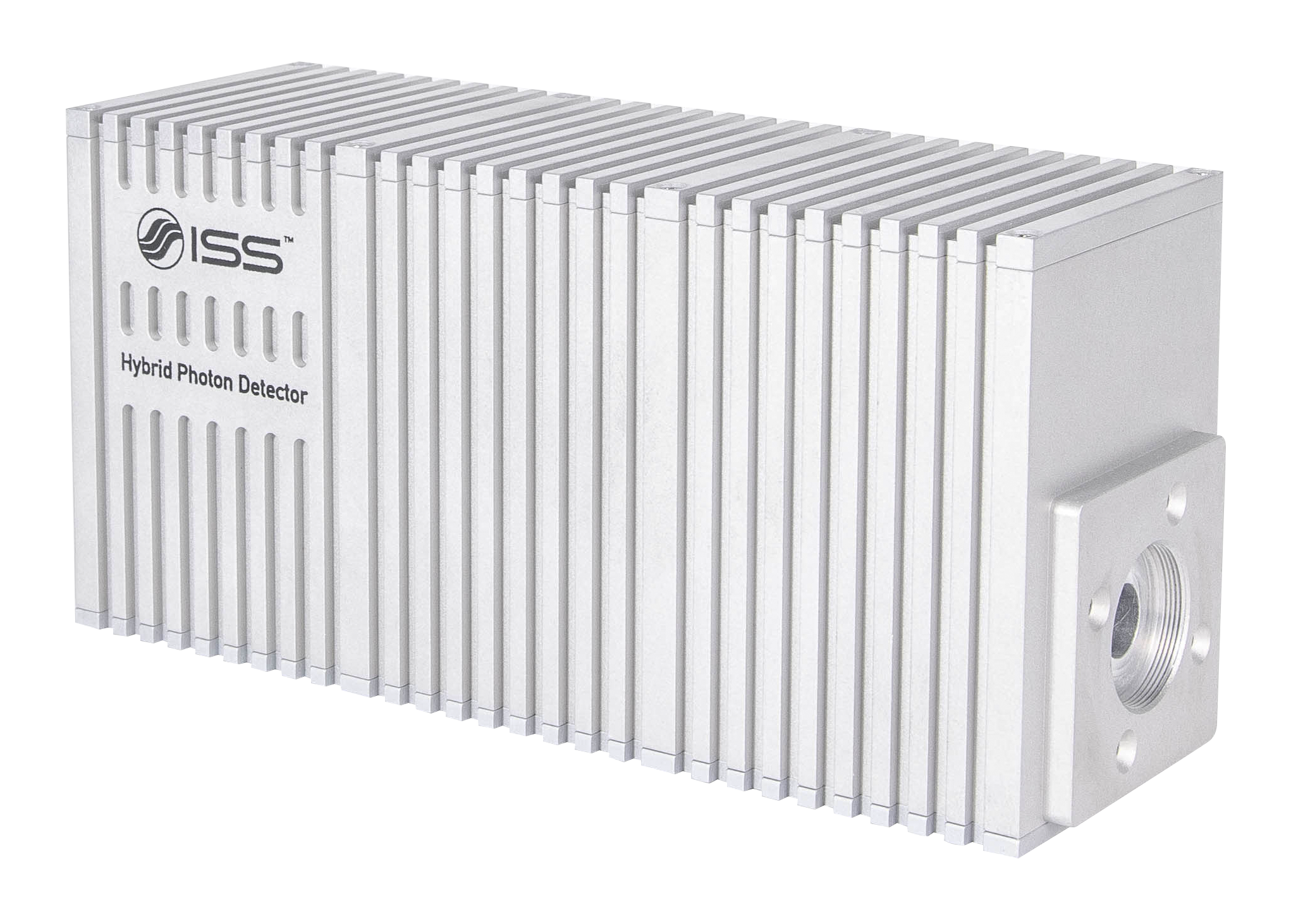

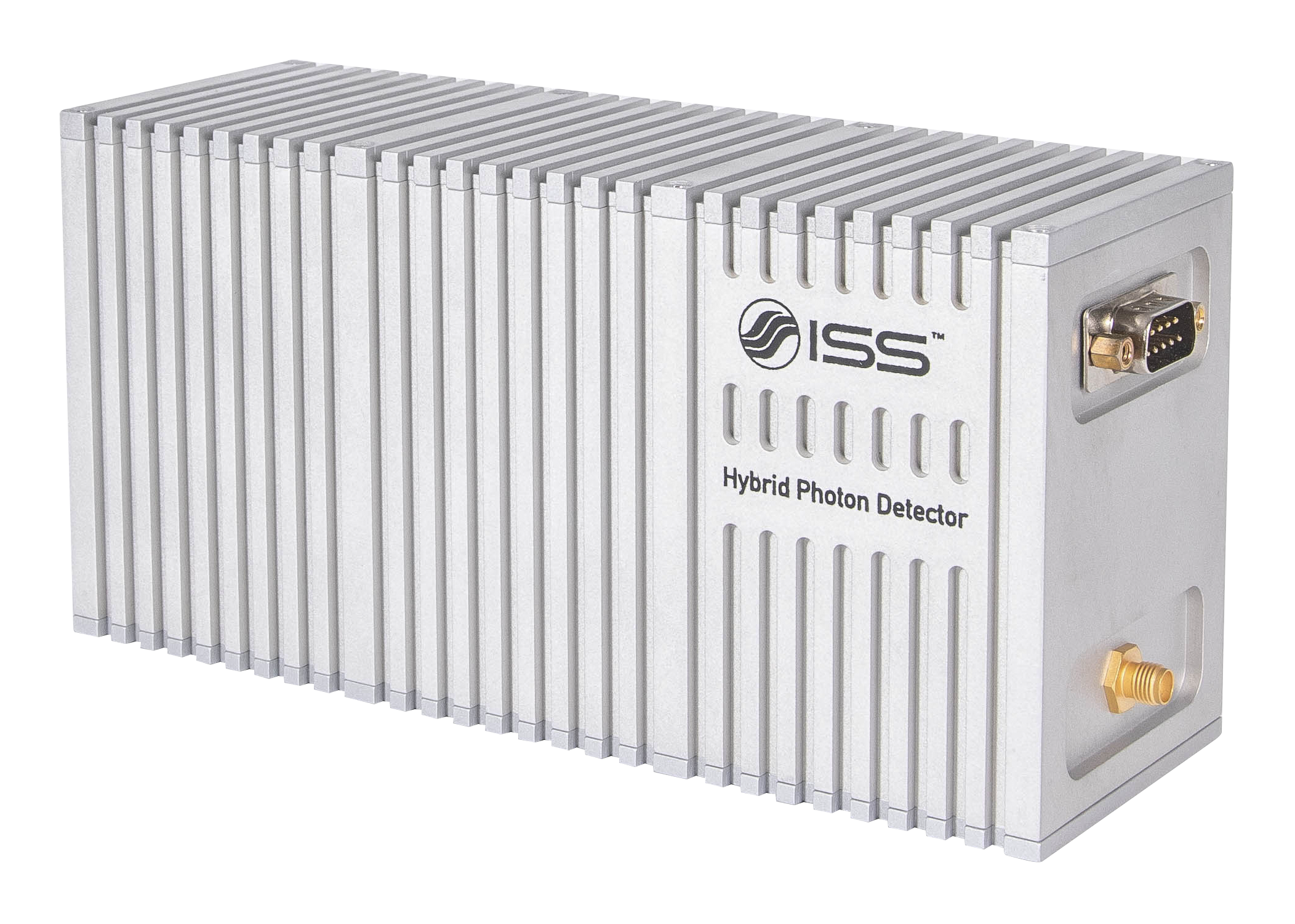

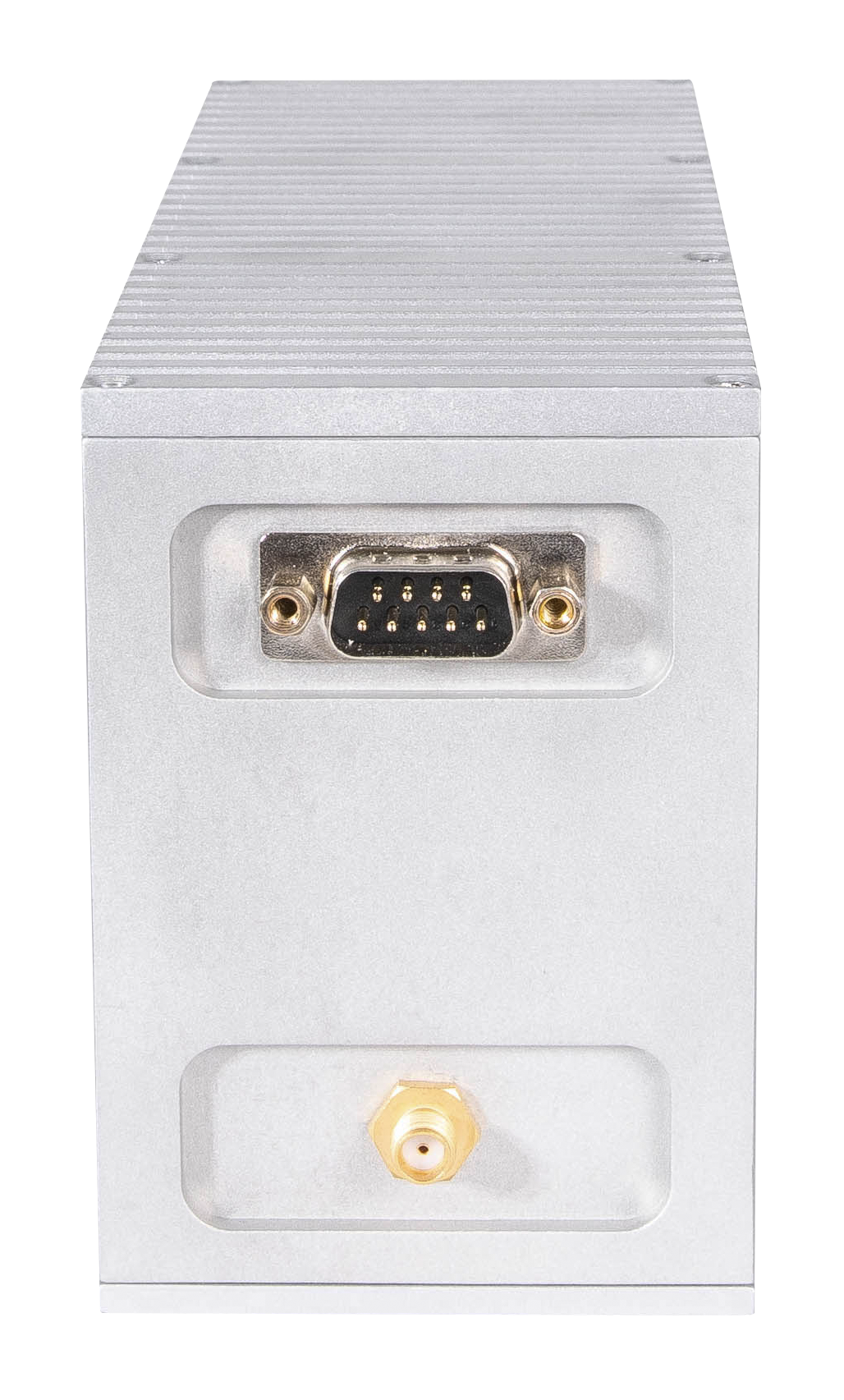

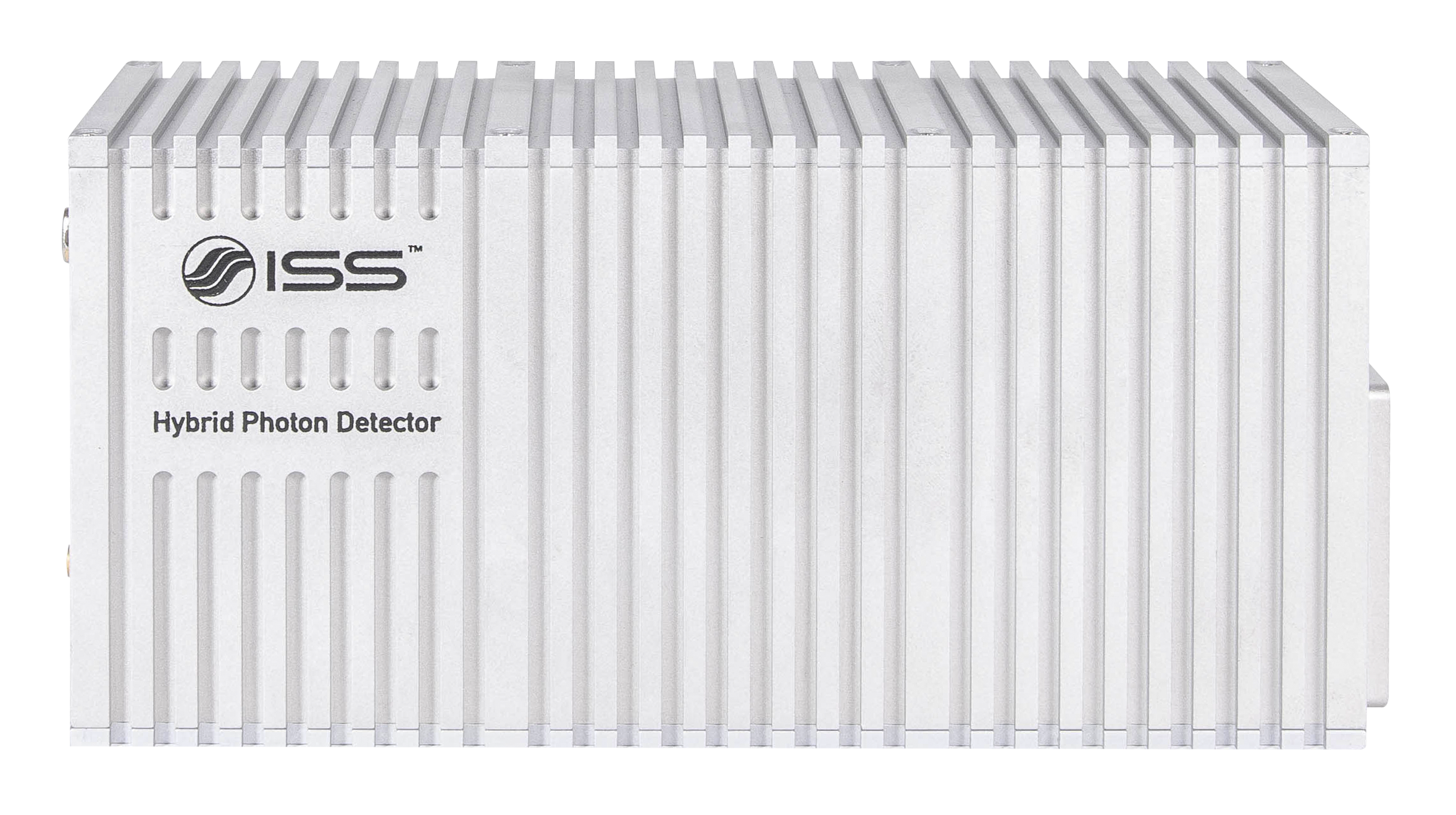

Hybrid Photon Detector

  • Timing resolution < 120 ps; < 20 ps for HyPD-300 and HyPD-350
  • Quantum Efficiency up to 43% (cathode dependent)
  • Wavelength range: five models covering from 185 nm to 920 nm
  • No afterpulsing
  • Thermoelectrically cooled
  • Internal pre-amplifier
  • Internal High voltage power supply
  • Gain control though Unit M700

Product Specifications for HyPD Series

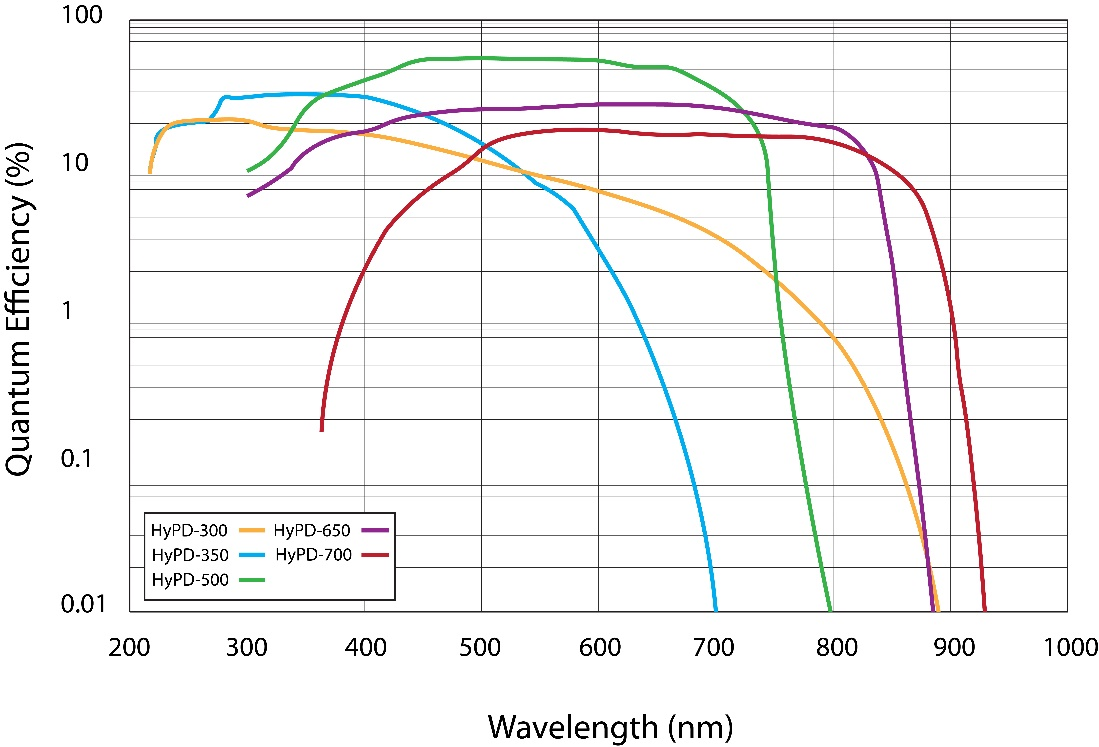

Quantum Efficiency of Various HyPD models vs. Wavelength

HyPD [R10467U] -07 -06 -40 -42 -50
ISS part no. HyPD-300 HyPD-350 HyPD-500 HyPD-650 HyPD-700
Wavelength range (nm) 220 - 850 220 - 650 250 - 720 300 - 850 380 - 890
Peak sensitivity wavelength 290 350 500   630
Quantum efficiency 26% @ 290 nm
18% @ 400 nm
28% @ 350 nm 45% @ 500 nm 22% @ 500 nm 25% @ 800 nm
Dark counts (c/s @ T=30) < 150 < 15 < 80 < 320 <350
Effective area diameter (mm) 3 6 3 3 3
Transit Time Spread (FWHM, typ. Value) < 20 ps < 20 ps 120 ps 150 ps 170 ps
Single electron response width (FWHM, typ.) 0.6 ns
Rise time (ns) 0.40
Max Count Rate > 10 MHz

Signal Output

Polarity
  • Negative
Connector
  • SMA
Impedance
  • 50 Ω

Power Supply

Power requirements (from M700 module)
  • ± 12 V; Peltier element: 0.5 – 1.0 A

Measurements for HyPD Series

Time-Resolved Fluorescence

Fluorescence Lifetime Imaging (FLIM)

Phosphorescence Lifetime Imaging (PLIM)

Foerster Resonance Energy Transfer (FRET)

Dynamic Polarization

Fluorescence Fluctuations Spectroscopy

Particle counting
