Overview of Adult Flexible Sensor

The flexible sensor is made from polyurethane rubber in which fiber optics and prisms are embedded. It has been designed for measurements on curved surfaces such as the head. Right hand and left hand versions are available for simultaneous dual head monitoring. The body is larger than the equivalent neonatal head scanner and is thus less susceptible to stray light and background light complications. The sensor may be held in place by medical adhesive that is attached to its surface.

Compatible with OxiplexTS, and OxiplexTS200.

Key Features of Adult Flexible Sensor

  • Low Profile, Very flexible and Comfortable
  • Many choices concerning emitter distances and number of emitter positions
  • Side entry fibers allow for maximum flexibility of the sensor
  • Inline detector/emitter geometry maximizes overlap of sample tissue
  • Allows measurements on curved surfaces

Key Characteristics of Adult Flexible Sensor

  • Flexible rubber molded construction
  • Four emitter positions with eight emitters
  • Standard fiber length 2.5 m (up to 10 m fibers available)
  • Standard emitter-detector distance; 2.0, 2.5, 3.0, 3.5 cm
  • Custom emitter detector distances available:
    • 1.5, 2.0, 2.5, 3.0 cm
    • 2.5, 3.0, 3.5, 4.0 cm

Example Configuration for Adult Flexible Sensor

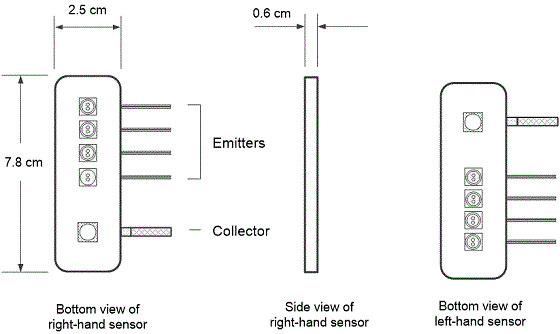

Schematic of Adult Flexible Sensor
