Overview of Infant Flexible Sensor

The infant flexible sensor is made from polyurethane rubber in which the fiber optics and prisms are embedded. It has been designed for measurements on curved surfaces such as the head. Right hand and left hand versions are available for simultaneous dual head monitoring.

Compatible with OxiplexTS, and OxiplexTS200.

Key Features of Infant Flexible Sensor

  • Low Profile, Very flexible, Comfortable
  • Side entry fibers allow for maximum flexibility of the scanner
  • Inline detector/emitter geometry maximizes overlap of sample tissue
  • Allows measurements on curved surfaces

Key Characteristics of Infant Flexible Sensor

  • Flexible rubber molded construction
  • Four emitter-detector positions with eight emitters
  • Standard emitter-detector distance; 1.5, 2.0, 2.5, 3.0 cm
  • Standard fiber length 2.5 m (up to 10 m fibers available)
  • Minimum body size for neonatal applications

Example Configuration for Infant Flexible Sensor

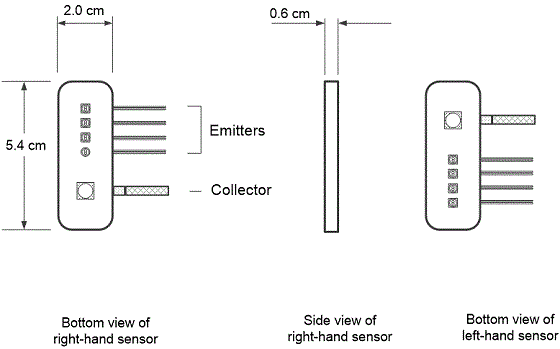

Schematic of Infant Flexible Sensor
