Overview of Rigid Sensor

MRI-compatible muscle sensor with optimized for use in a MRI, the fiber length is 10 m and the sensor contains no metal in the sensor body. The sensor body is made from rugged plastic.

Compatible with OxiplexTS, and OxiplexTS200.

Key Features of MRI-compatible Muscle Sensor

  • Rugged and versatile for general investigational use
  • Optimal optical coupling efficiency which allows maximum signal
  • Maximum accuracy and precision for flat surfaces

Key Characteristics of MRI-compatible Muscle Sensor

  • Rigid Plastic Body
  • Standard emitter-detector distance; 2.0, 2.5, 3.0, 3.5 cm
  • Custom emitter detector distances available:
    • 1.5, 2.0, 2.5, 3.0 cm
    • 2.5, 3.0, 3.5, 4.0 cm
    • 3.0, 3.5, 4.0, 4.4 cm

Example Configuration for Rigid Sensor

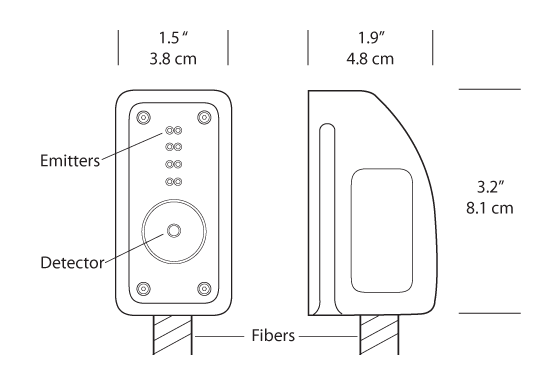

Schematic of MRI Compatible Sensor
