Dichroic Cubes
Overview of 2-, 3-, 4-detector Unit (Mini-TDU)
The detectors are conveniently mounted on sturdy baseplates holders that are coupled to the Q2 or to the confocal heads of commercial laser scanning microscopes. Cubes holding dichroic filters are located at the channels junctions to separate the wavelength ranges directed to each detector; filters in front of each detector select the spectral wavelength region. The cube accommodates polarizing beam splitters for polarization acquisition. Holder units for 2, 3 and 4 detectors are available. Detectors type may be different on a holder; for instance, a 4-detector unit may carry two SPADs and two hybrid PMTs. A fiber port can replace a detector coupling hardware and used, for instance, to connect a spectrograph.
Compatible with Q2, and PL1.-

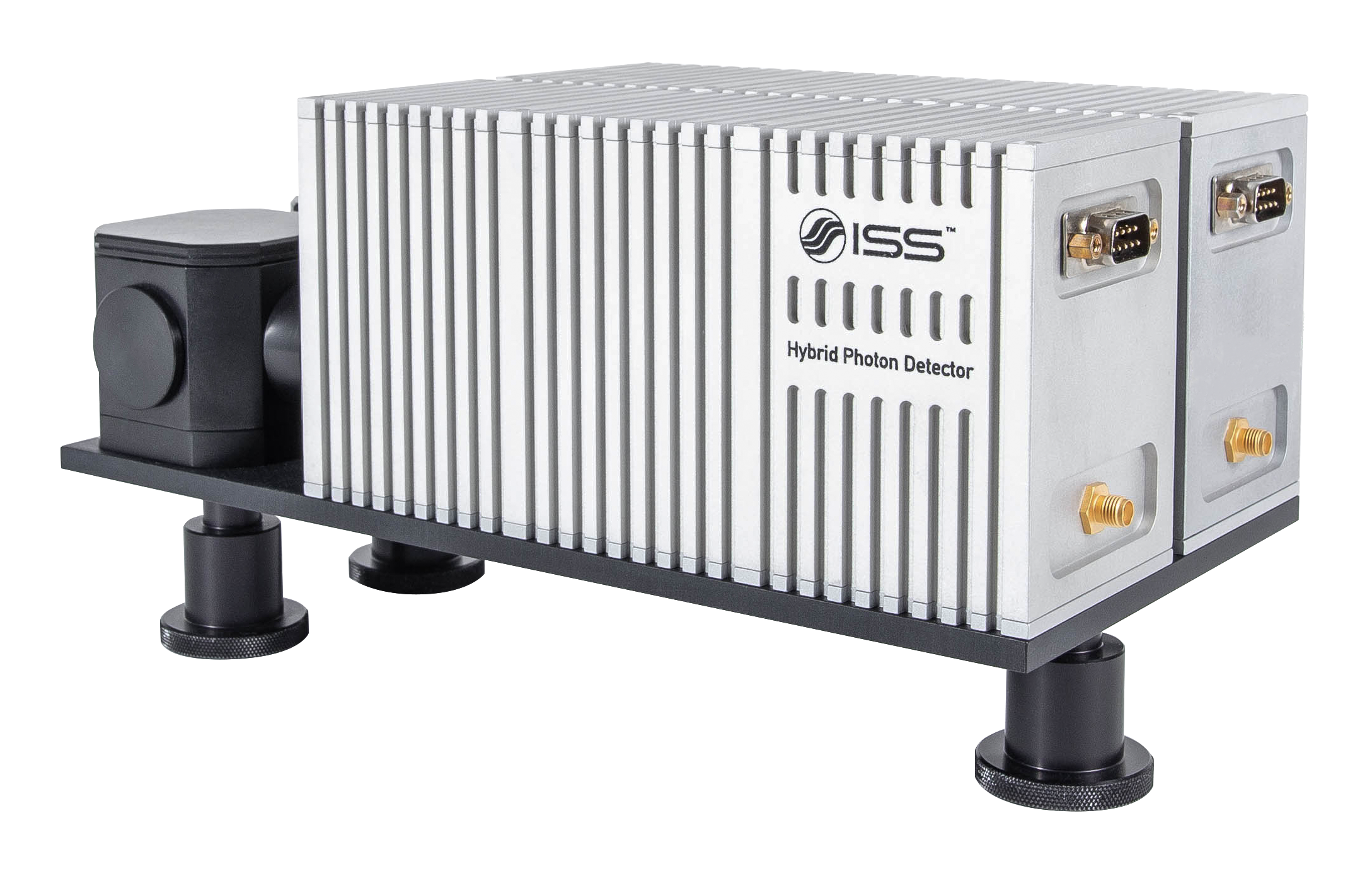

<p>Two Hybrid Detectors</p>
-
-
-
-
-
Two Detectors in Perpendicular
-
<p>Three single-photon-counting detectors</p>
-
-
-
-
-
-
-
<p>Four detectors unit</p>
-
-
-
-
Two-Detector Mini-TDU

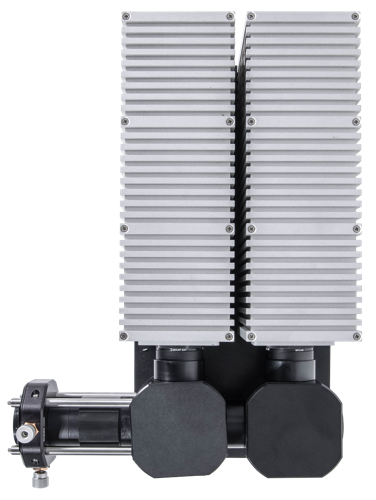

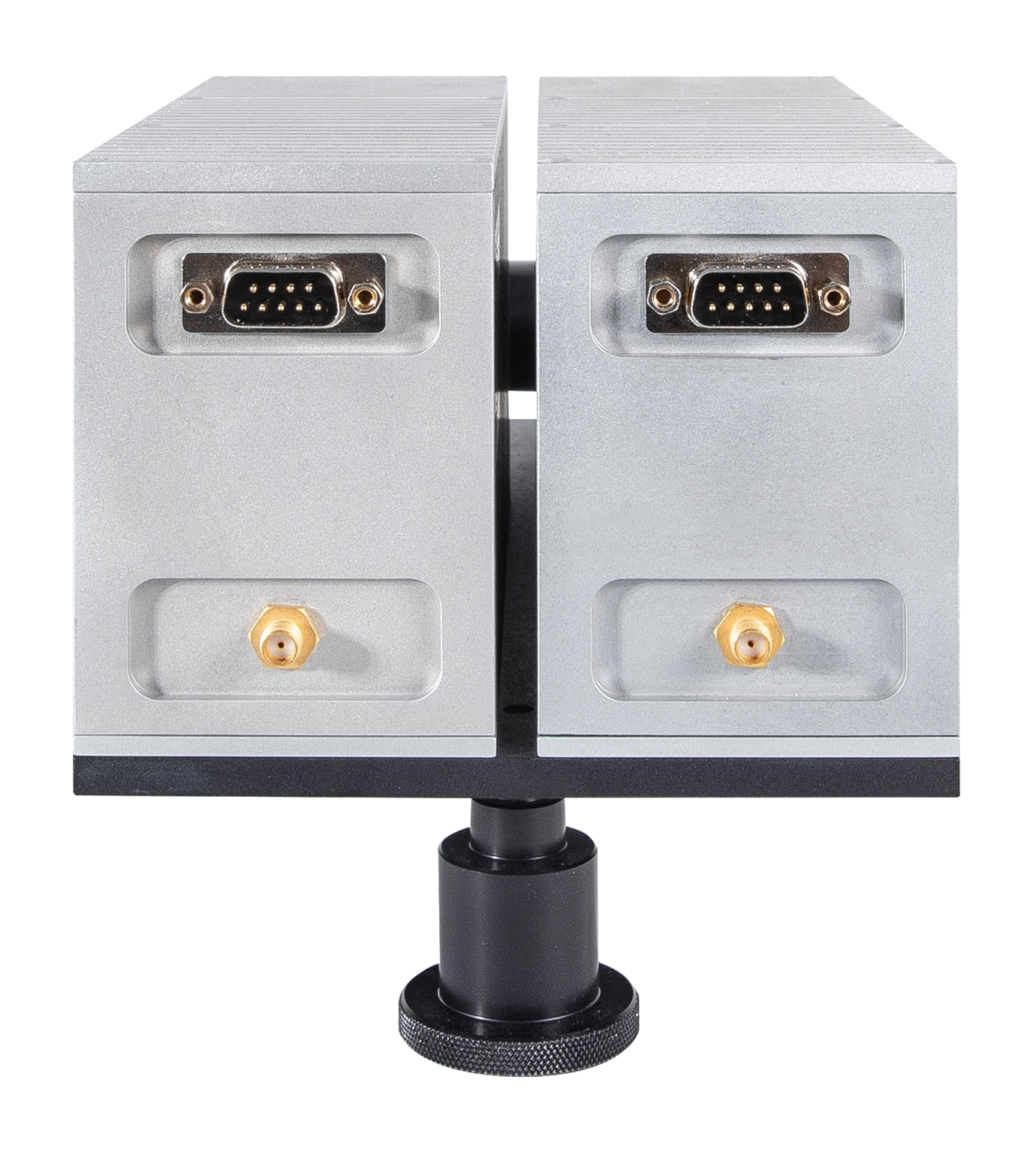

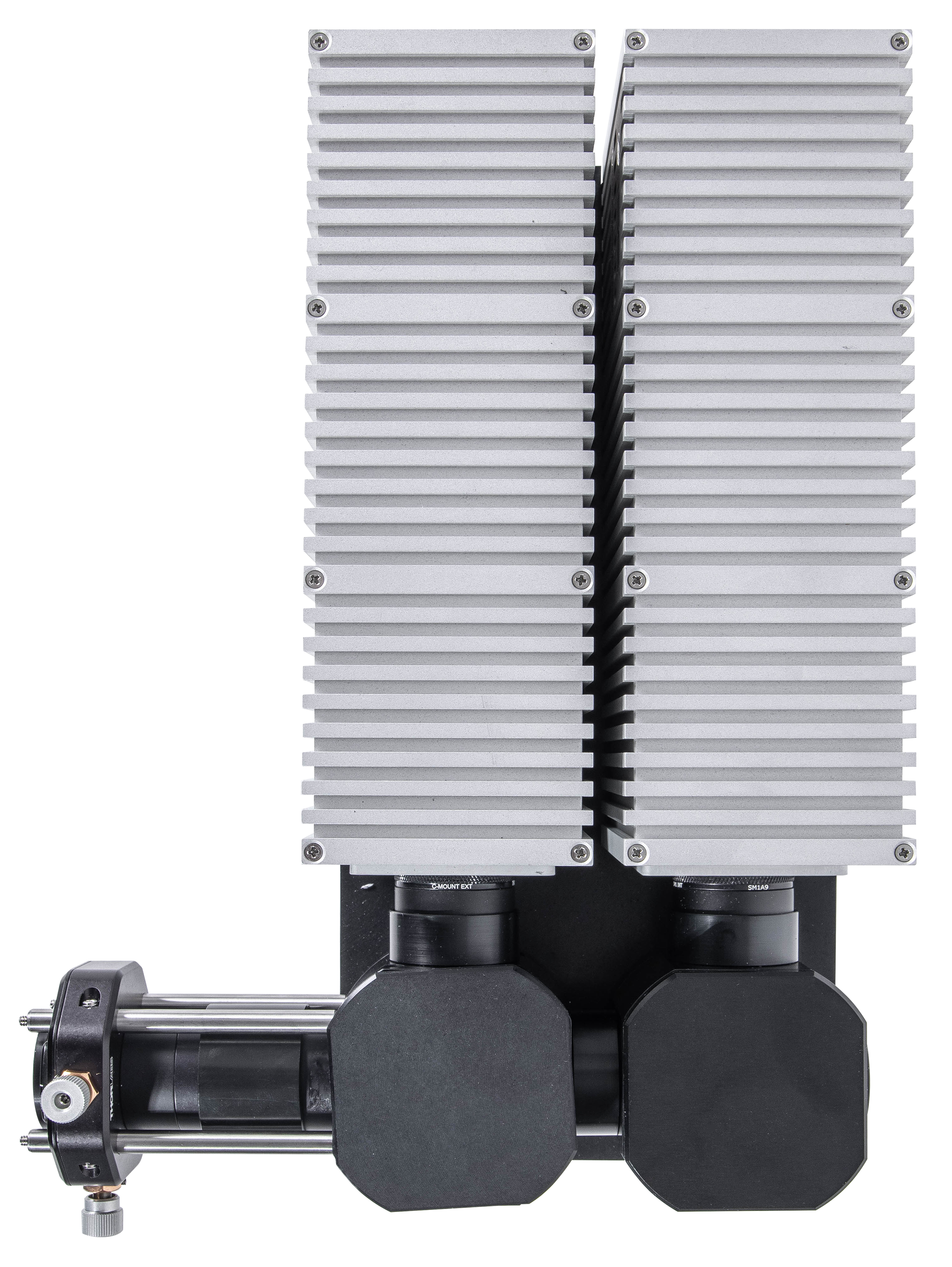

Two-Detector Mini-TDU with hybrid detectors in parallel format

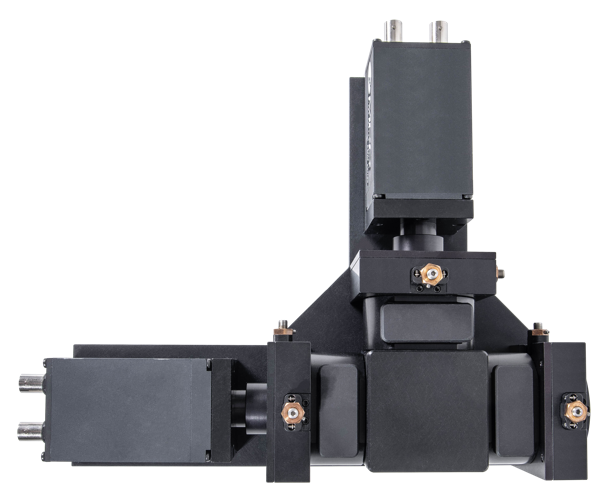

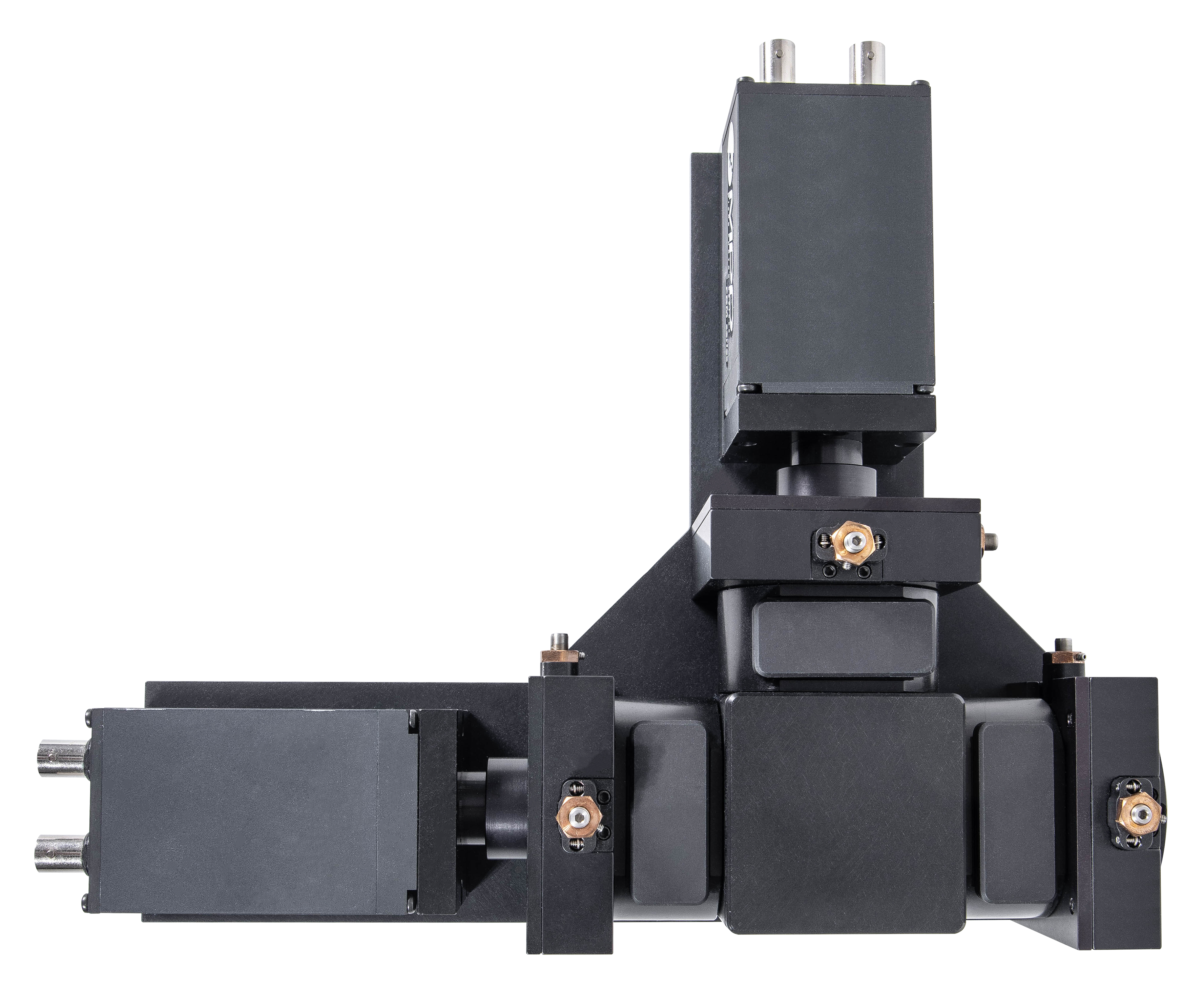

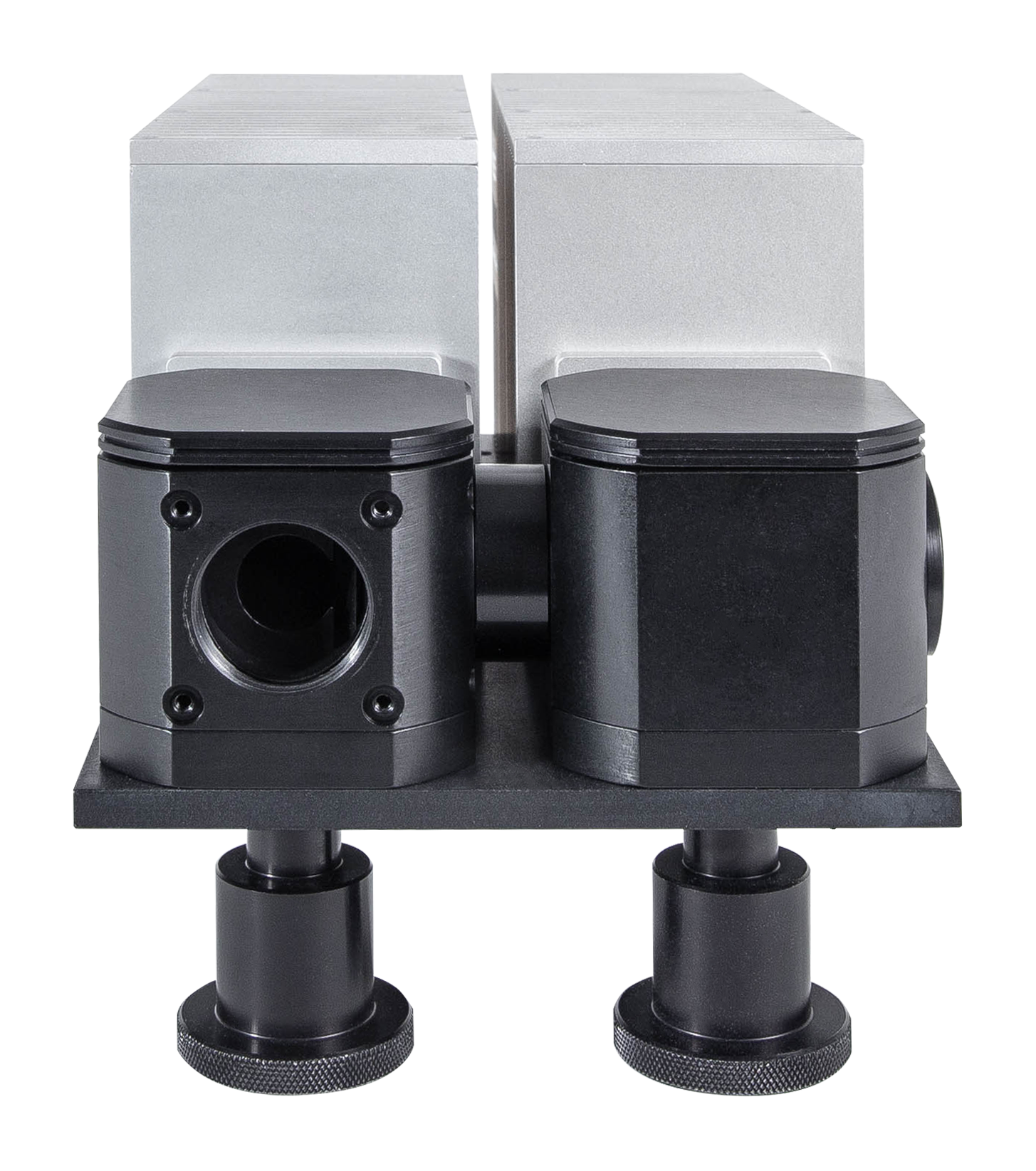

Two-Detector Mini-TDU with detectors in perpendicular format

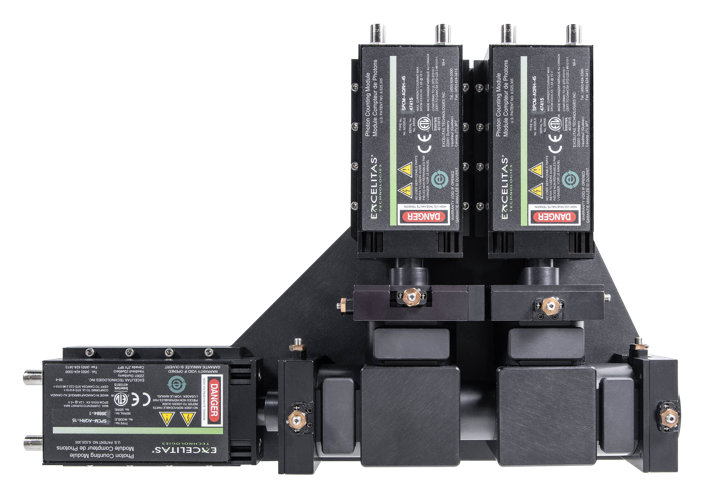

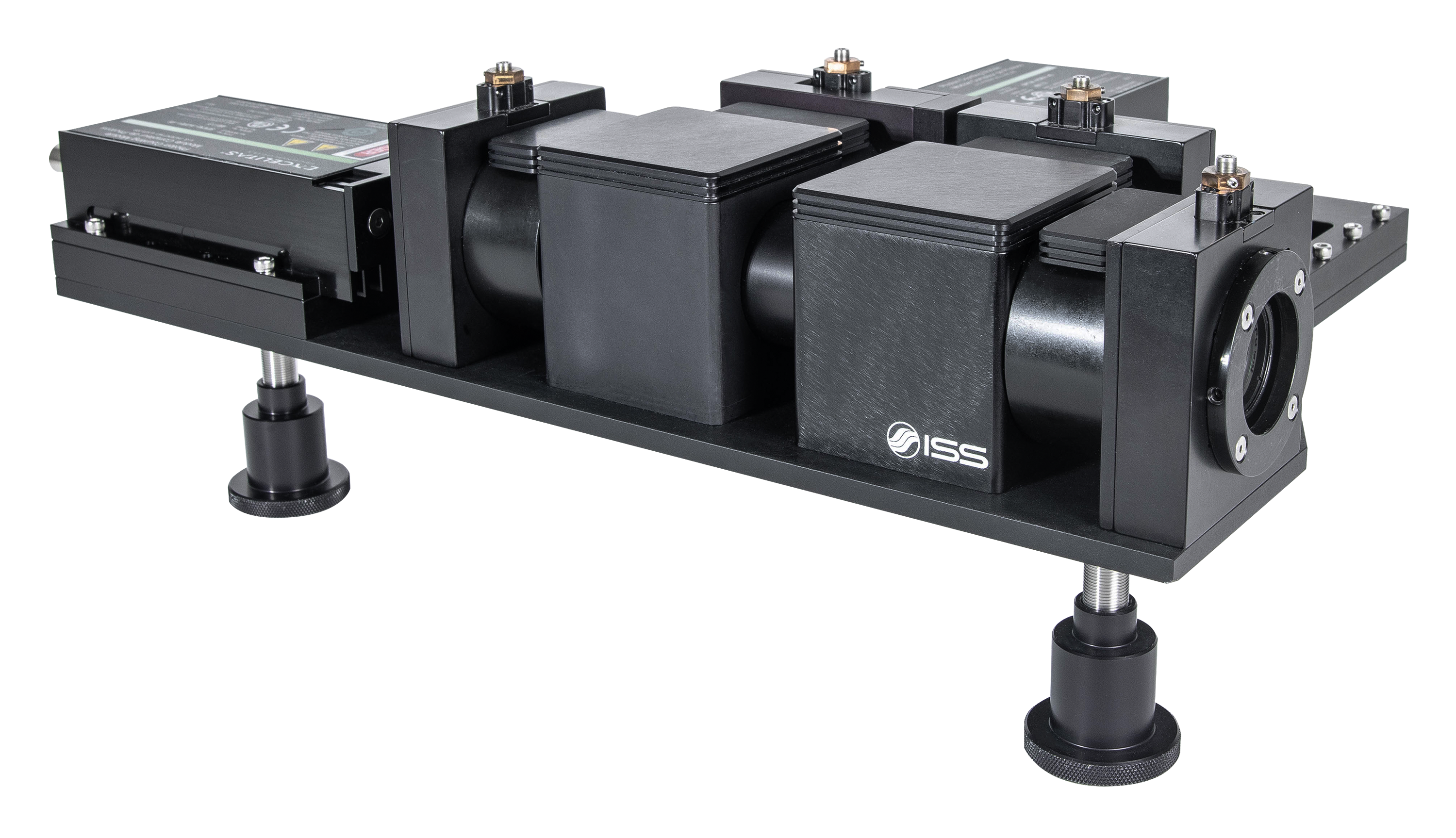

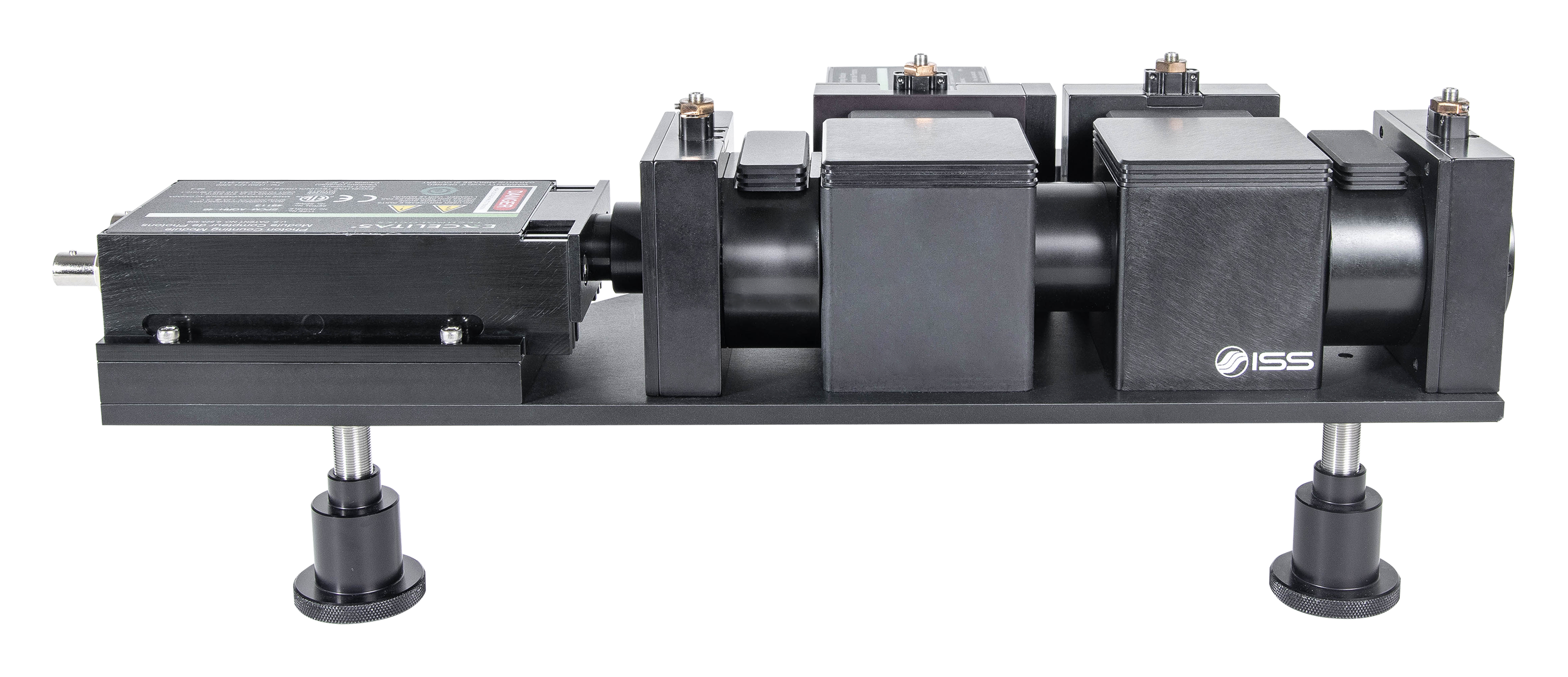

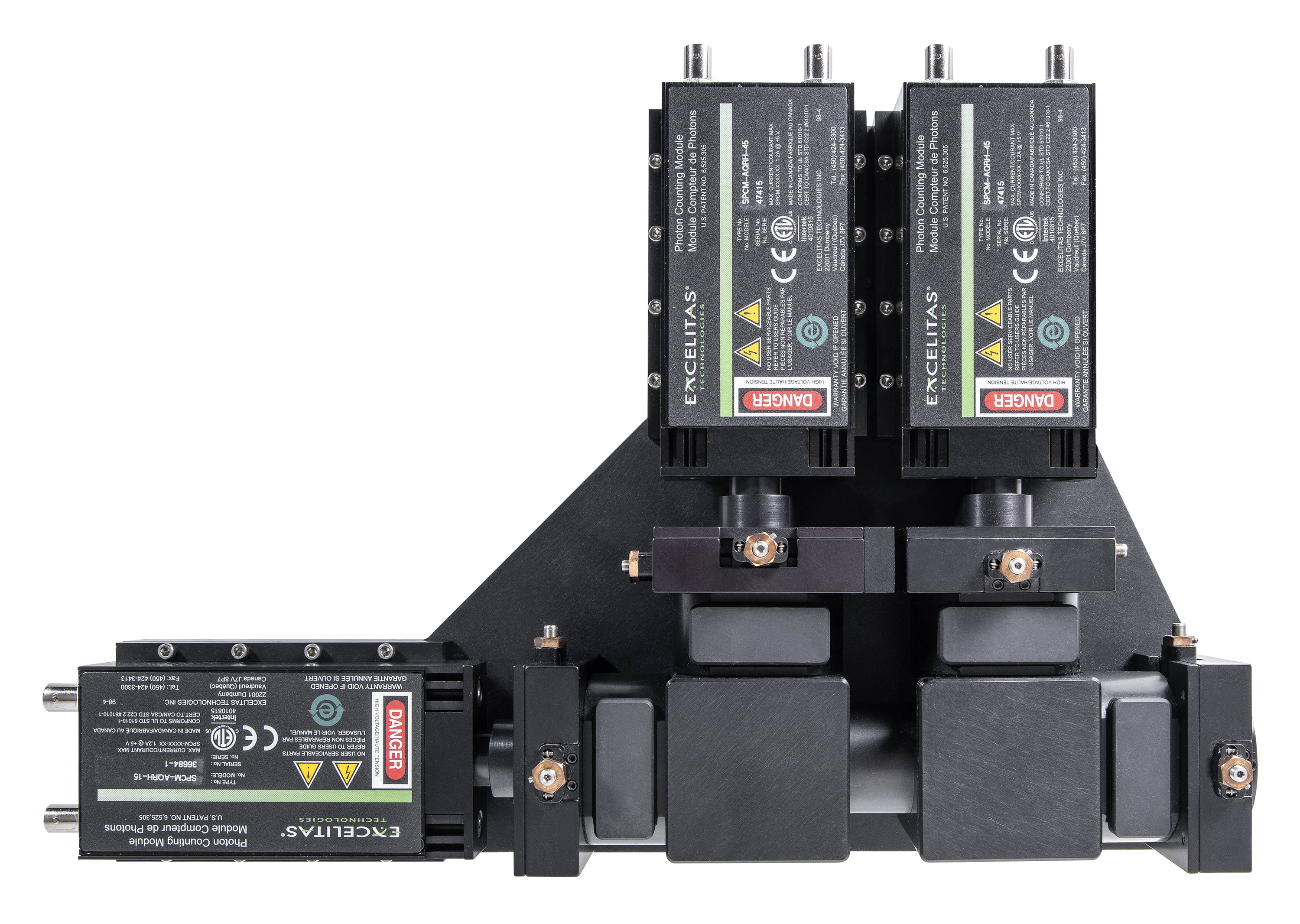

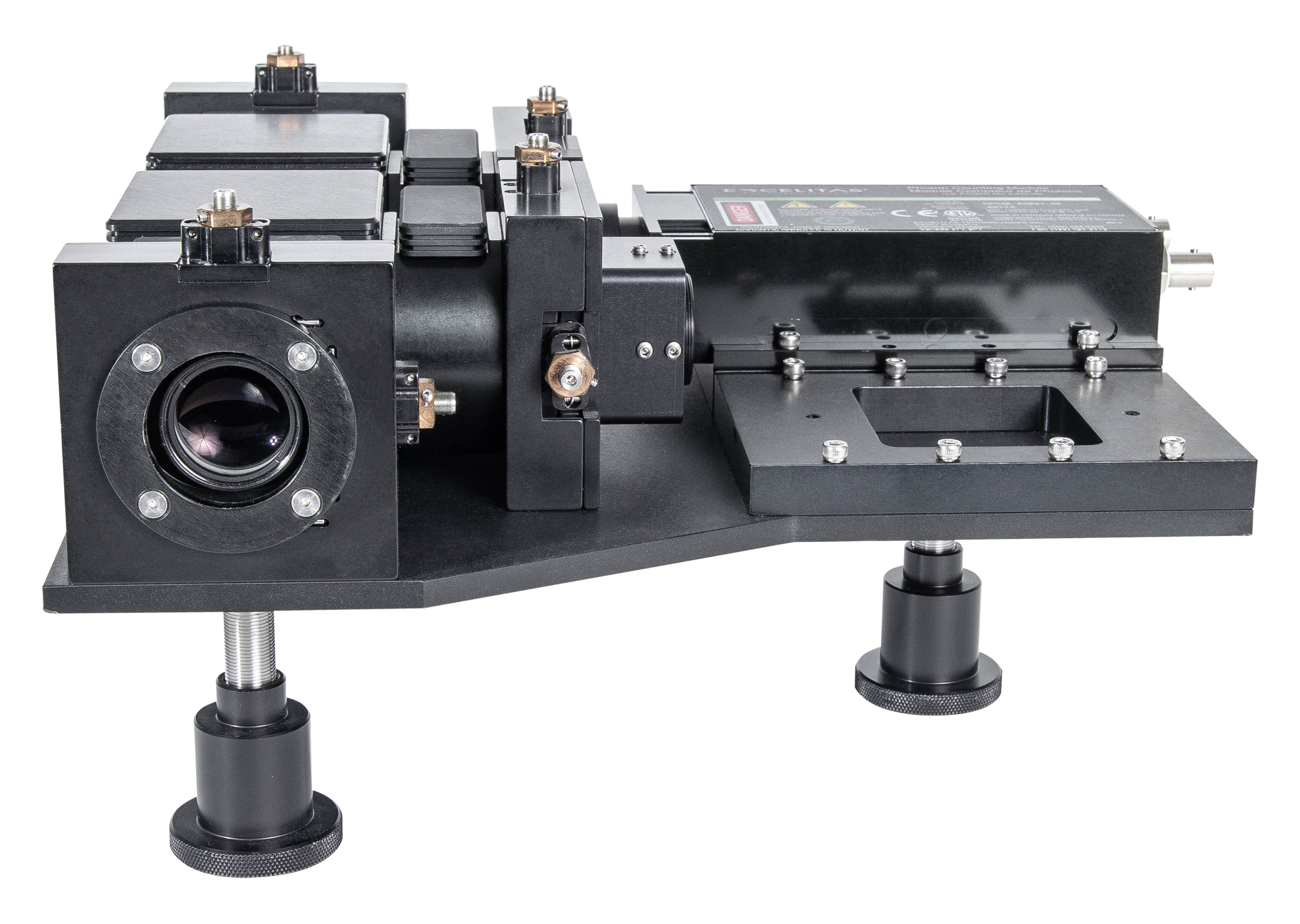

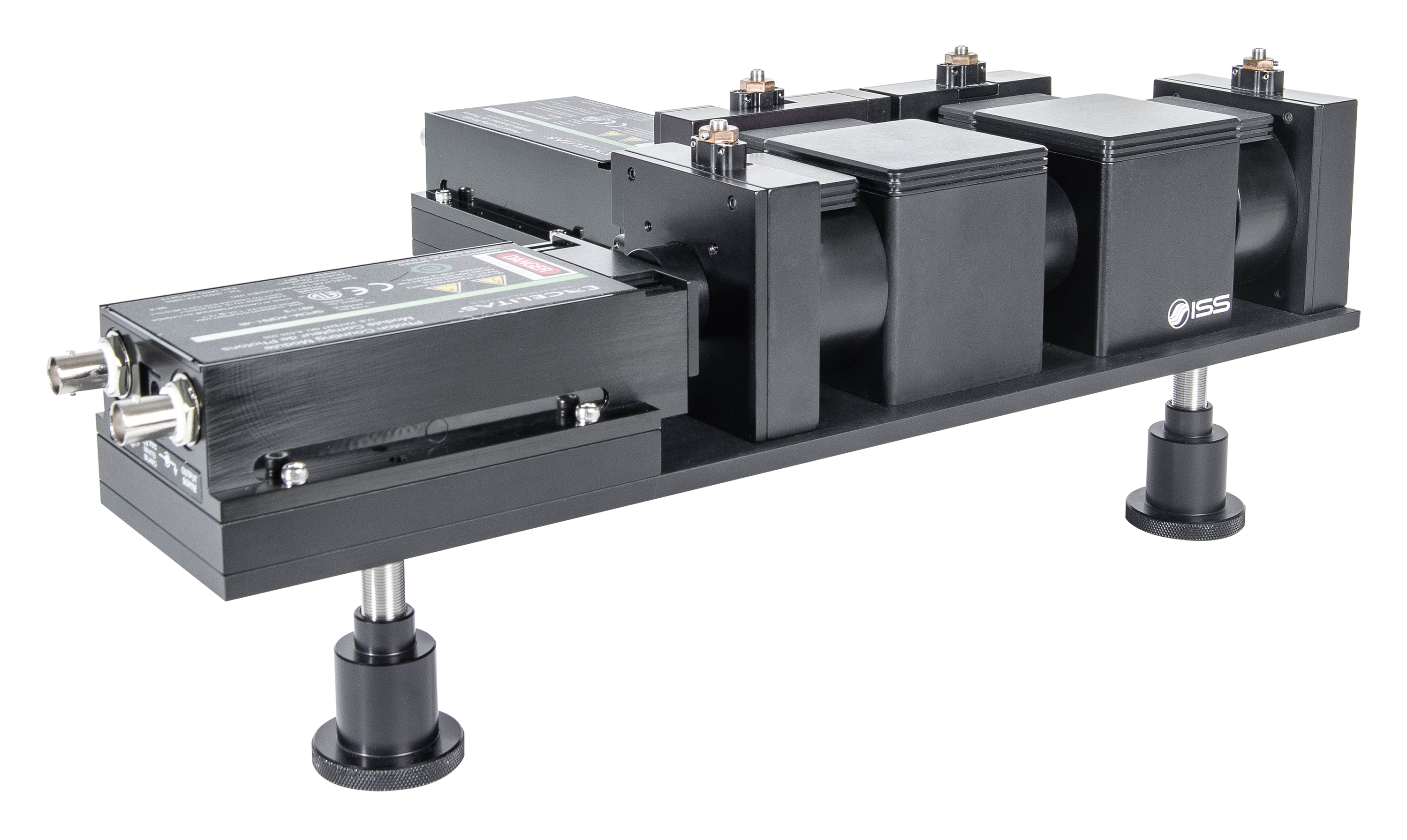

Three-Detector Mini-TDU

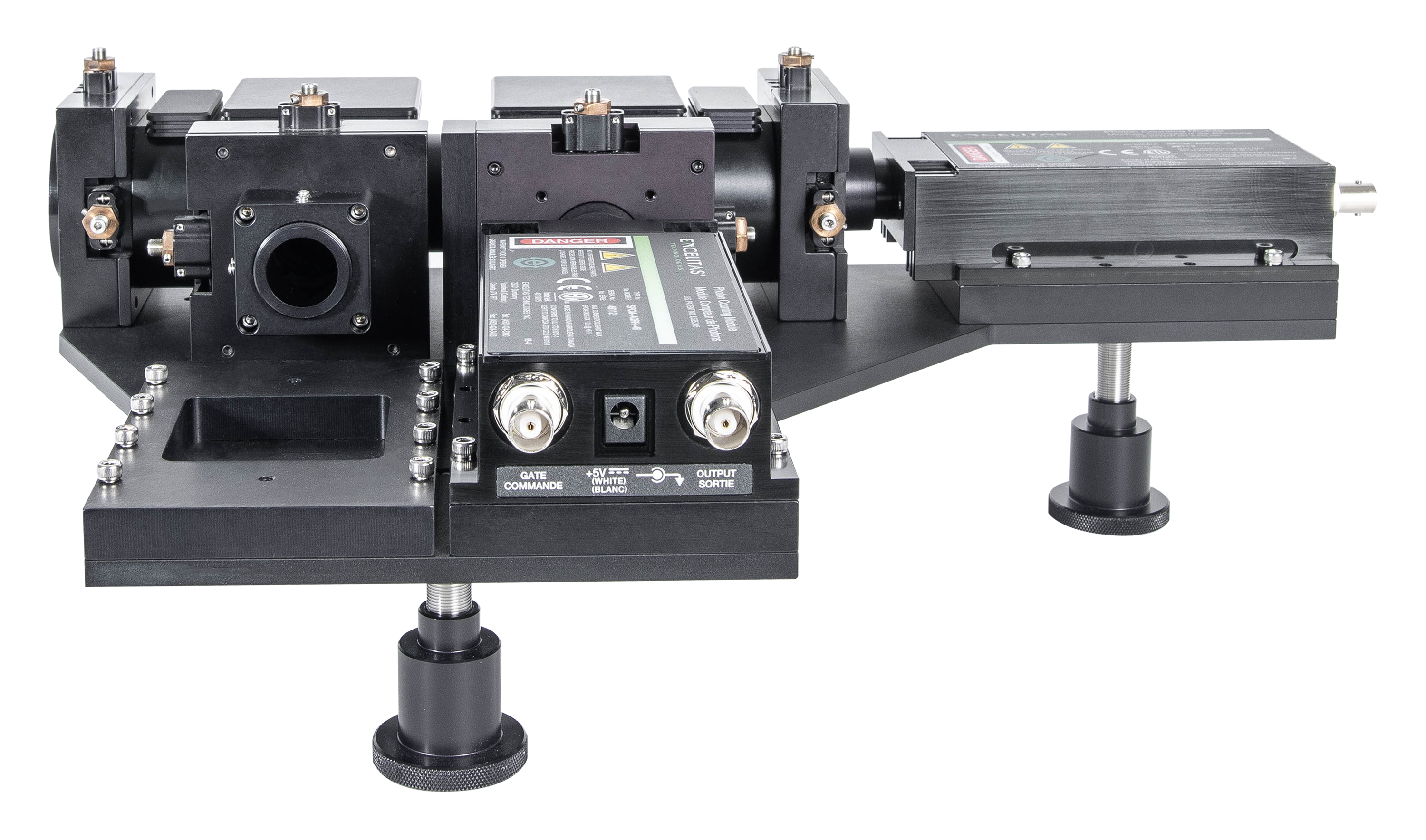

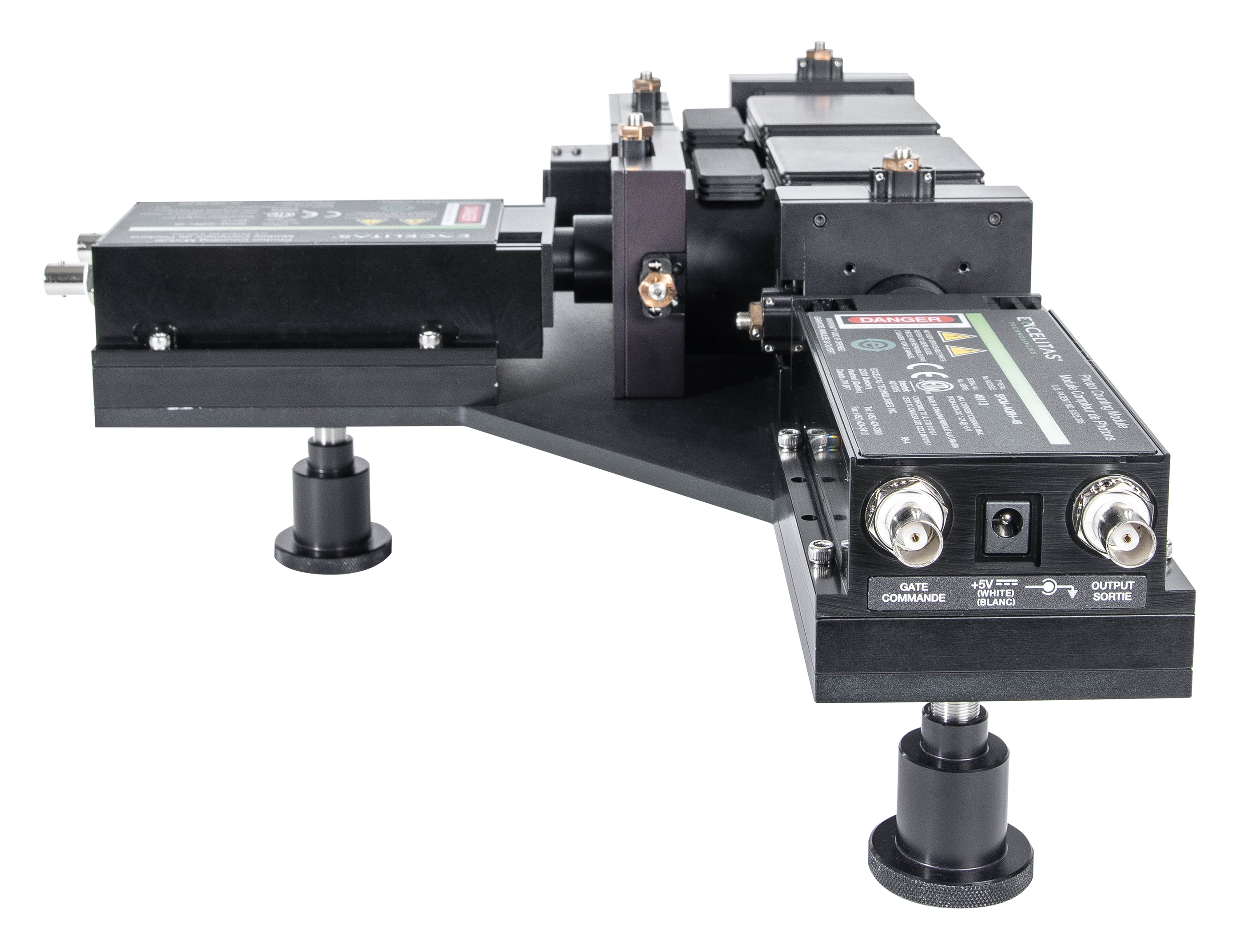

Three-Detector Mini-TDU

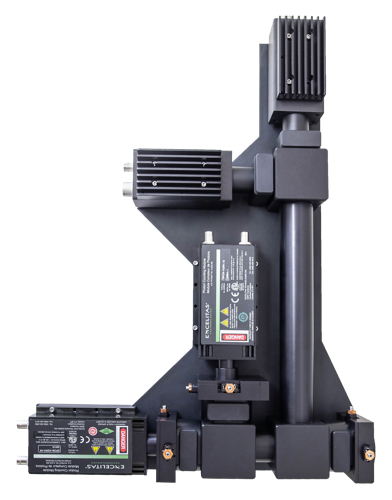

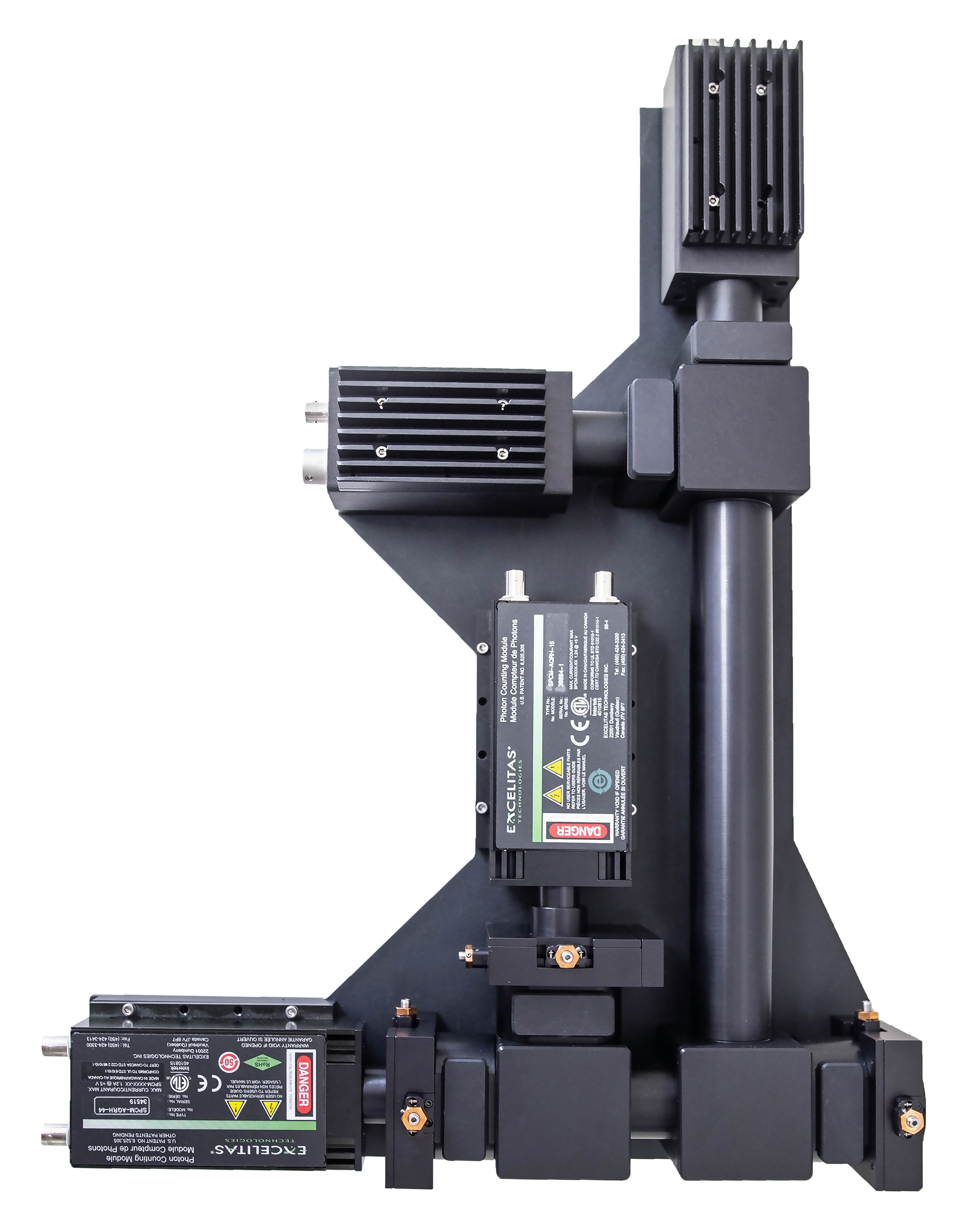

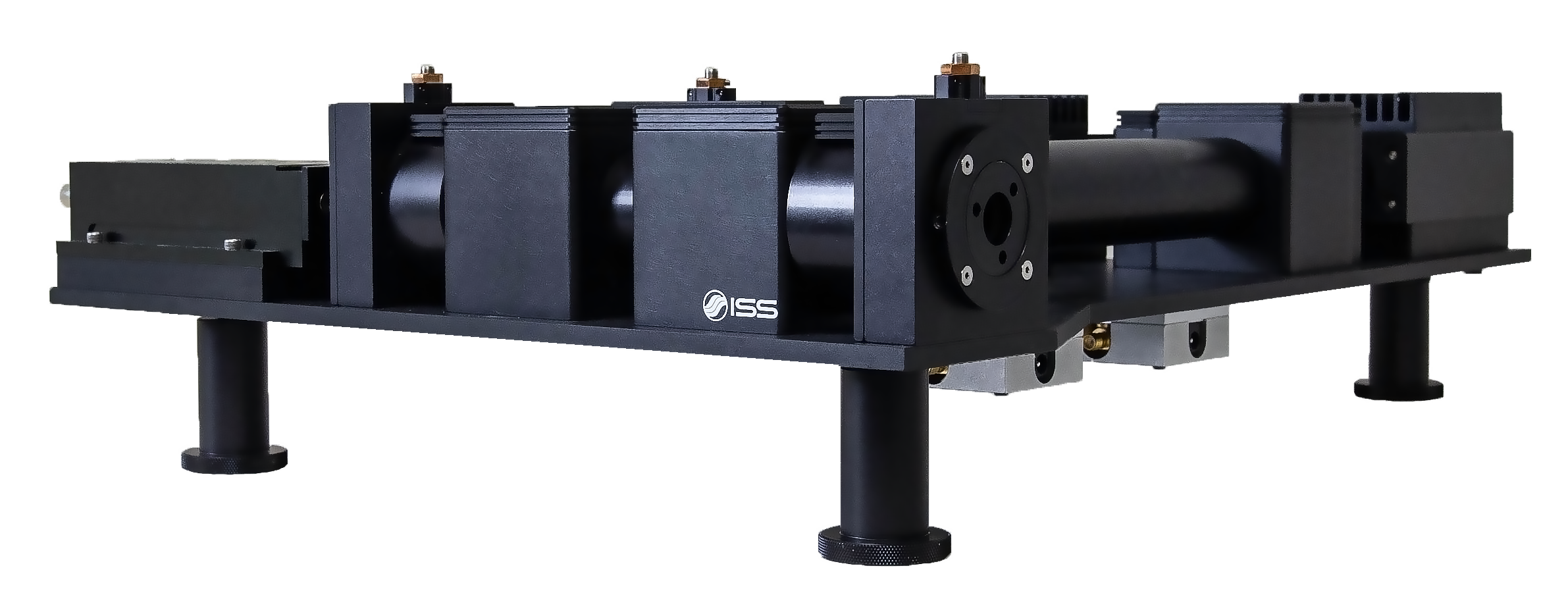

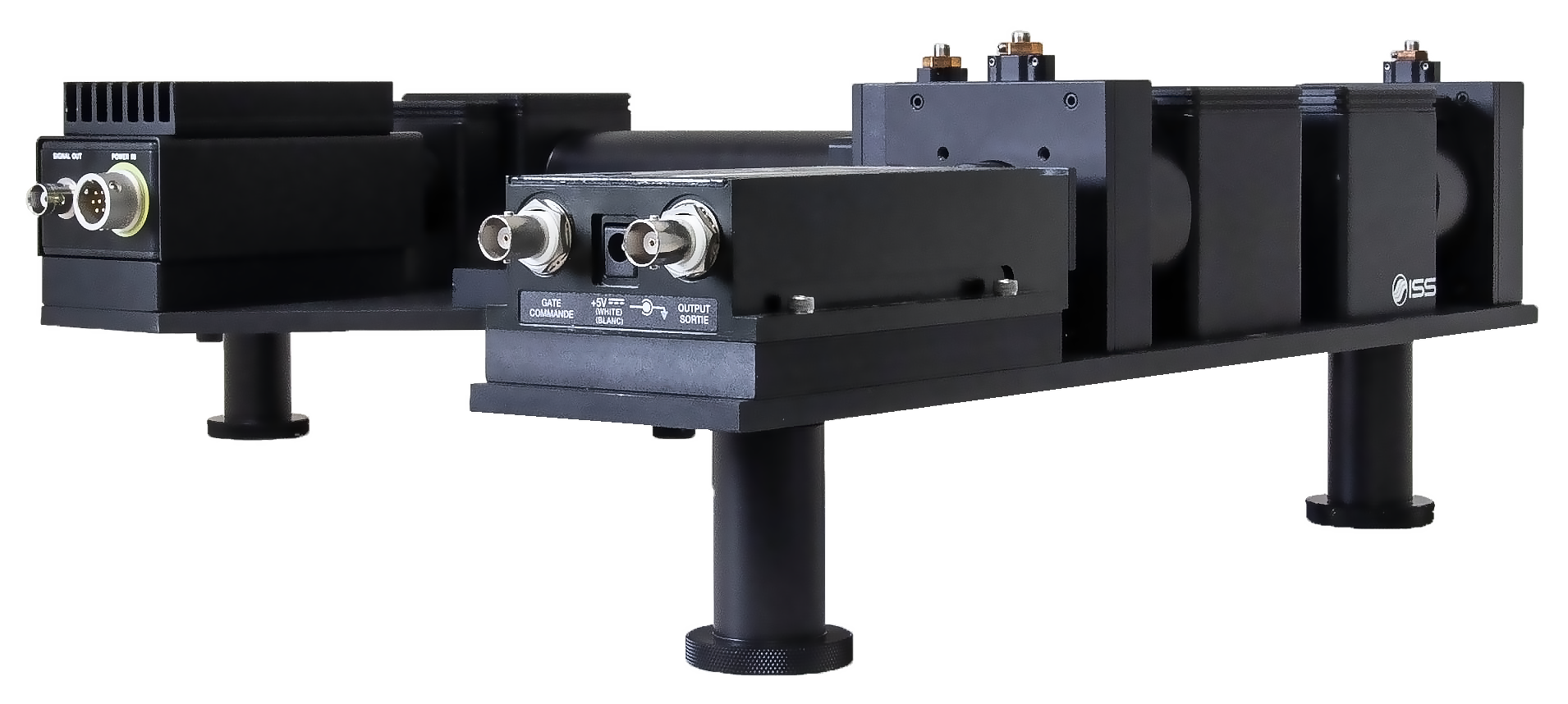

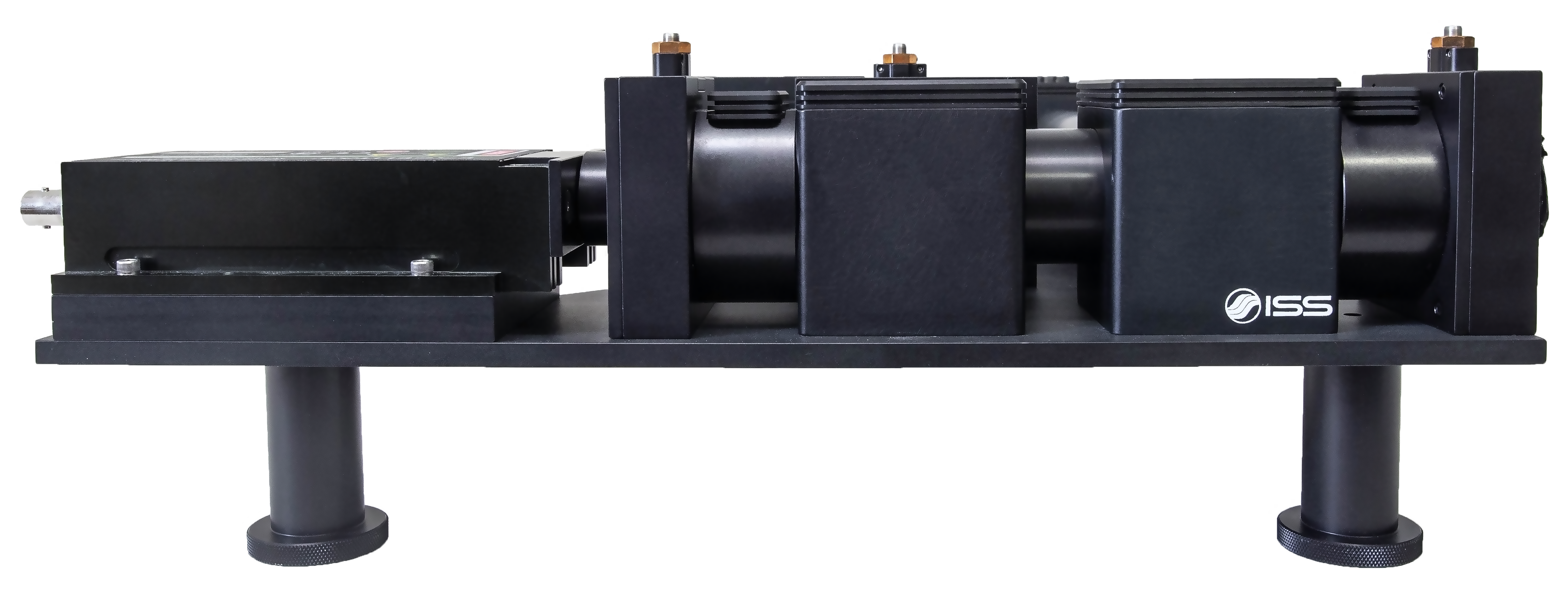

Four-Detector Mini-TDU

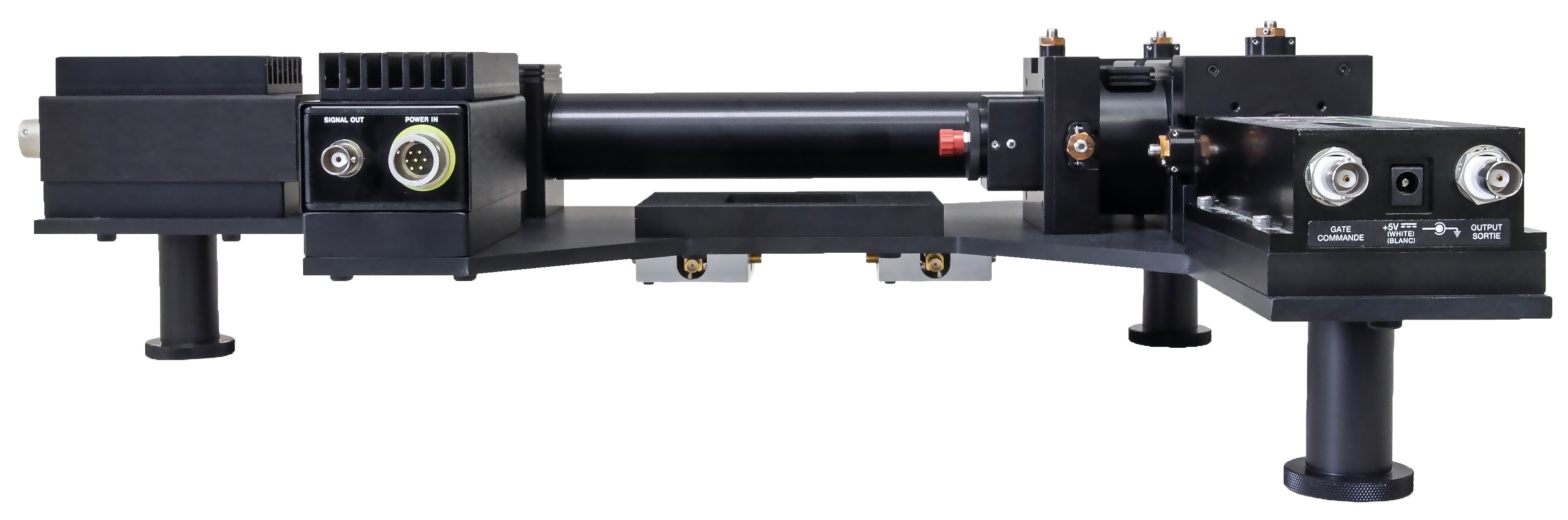

Four-Detector Mini-TDU
Part Models
Q252, Q253, Q254, Q262, Q263, Q264, Q272, Q273, Q274
Product Accessories for 2-, 3-, 4-detector Unit (Mini-TDU)
Configurations of 2-, 3-, 4-detector Unit (Mini-TDU)
Detectors
One Detector
Two Detectors on Q2
The beam is separated by a dichroic mounted onto a cube inserted in the T-junction. Filters can be added to the cube or to the filters holders in front of each detector.SPAD detectors are coupled to an XZ stage for fine alignment, as well as the entire assembly.
Two Detectors and a Spectrograph on Q2
The beam is separated by a dichroic mounted onto a cube inserted in the T-junction. Filters can be added to the cube or to the filters holders in front of each detector.SPAD detectors are coupled to an XZ stage for fine alignment, as well as the entire assembly.
Two Detectors Aligned in Parallel on Q2
The beam is separated by a dichroic mounted onto a cube inserted in the T-junction. Filters can be added to the cube or to the filters holders in front of each detector.SPAD detectors are coupled to an XZ stage for fine alignment, as well as the entire assembly.
Two Detectors Aligned in Parallel and a Spectrograph on Q2
The beam is separated by a dichroic mounted onto a cube inserted in the T-junction. Filters can be added to the cube or to the filters holders in front of each detector.SPAD detectors are coupled to an XZ stage for fine alignment, as well as the entire assembly.
Three Detectors on Q2
Each detector is coupled to a XZ stage for fine alignment.
