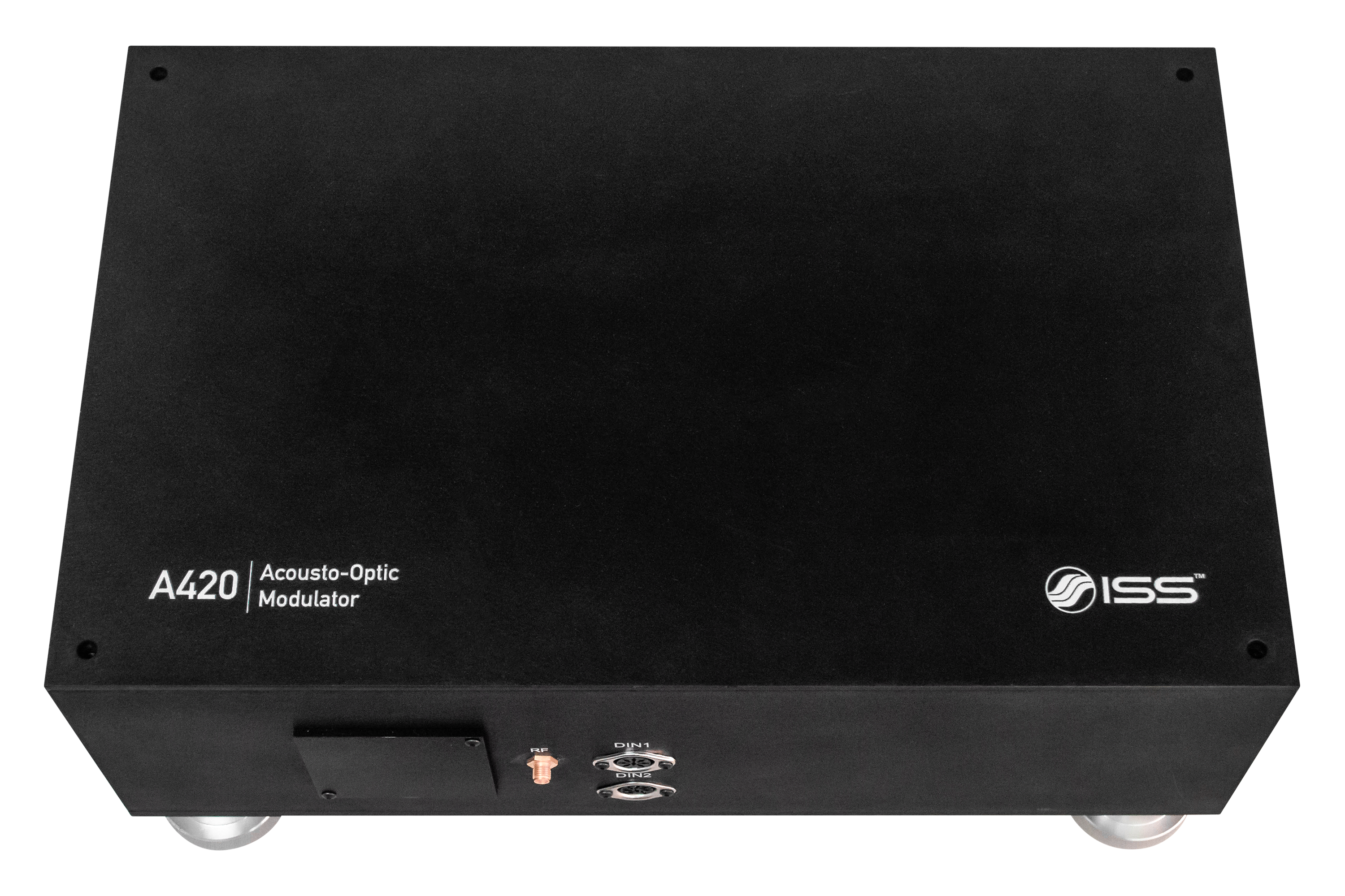

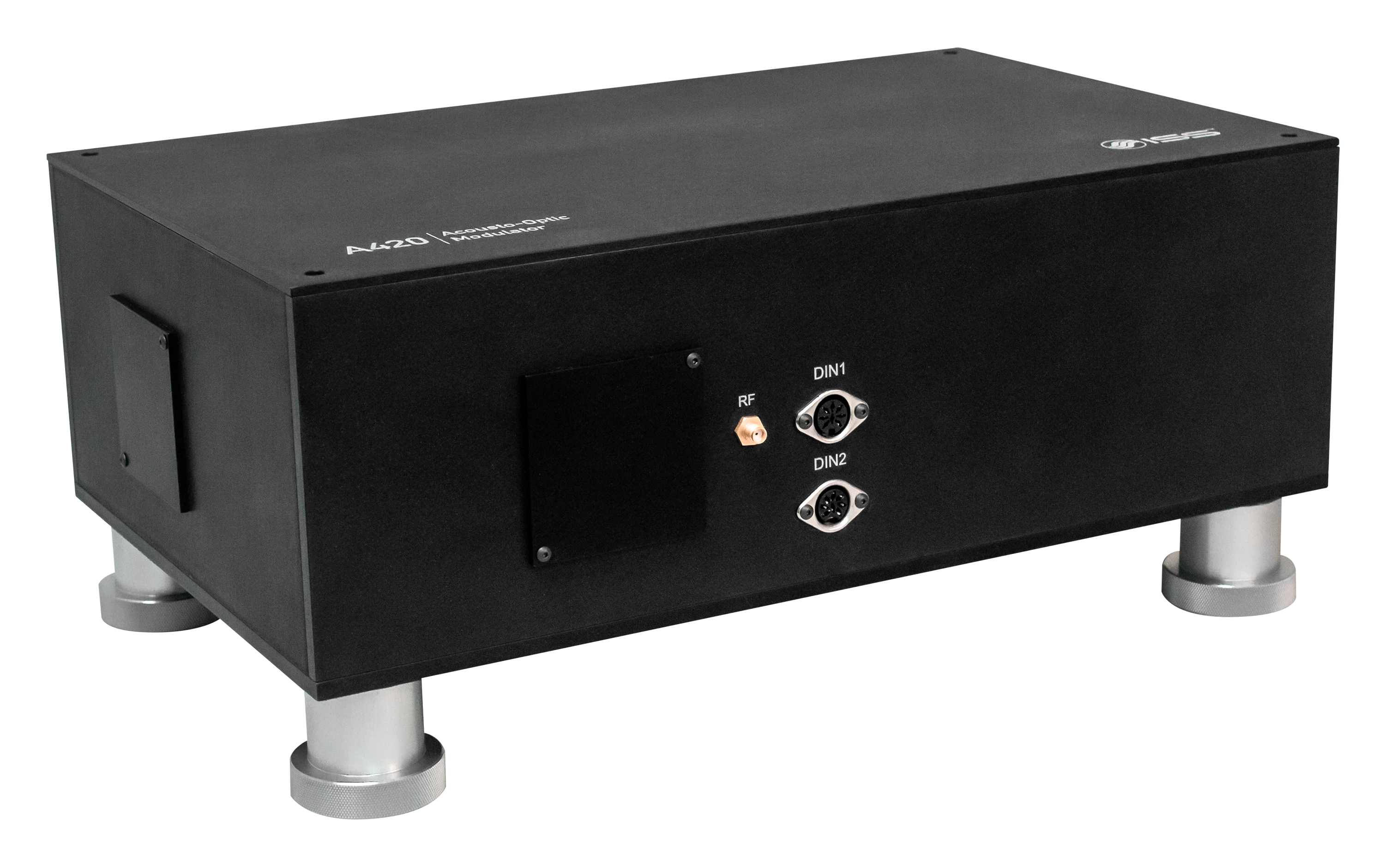

Overview of Acousto-optic Modulator (AOM)

AOM is designed to be used for fast controlling the intensity of the Ti:Sapphire laser. The blanking function is provided for the on/off RF modulation of the laser intensity by an external TTL clock up to 1 MHz; this utility enables many applications such as PLIM (Phosphorescence Lifetime Imaging).

Compatible with Q2, and PL1.

Product Specifications for Acousto-optic Modulator (AOM)

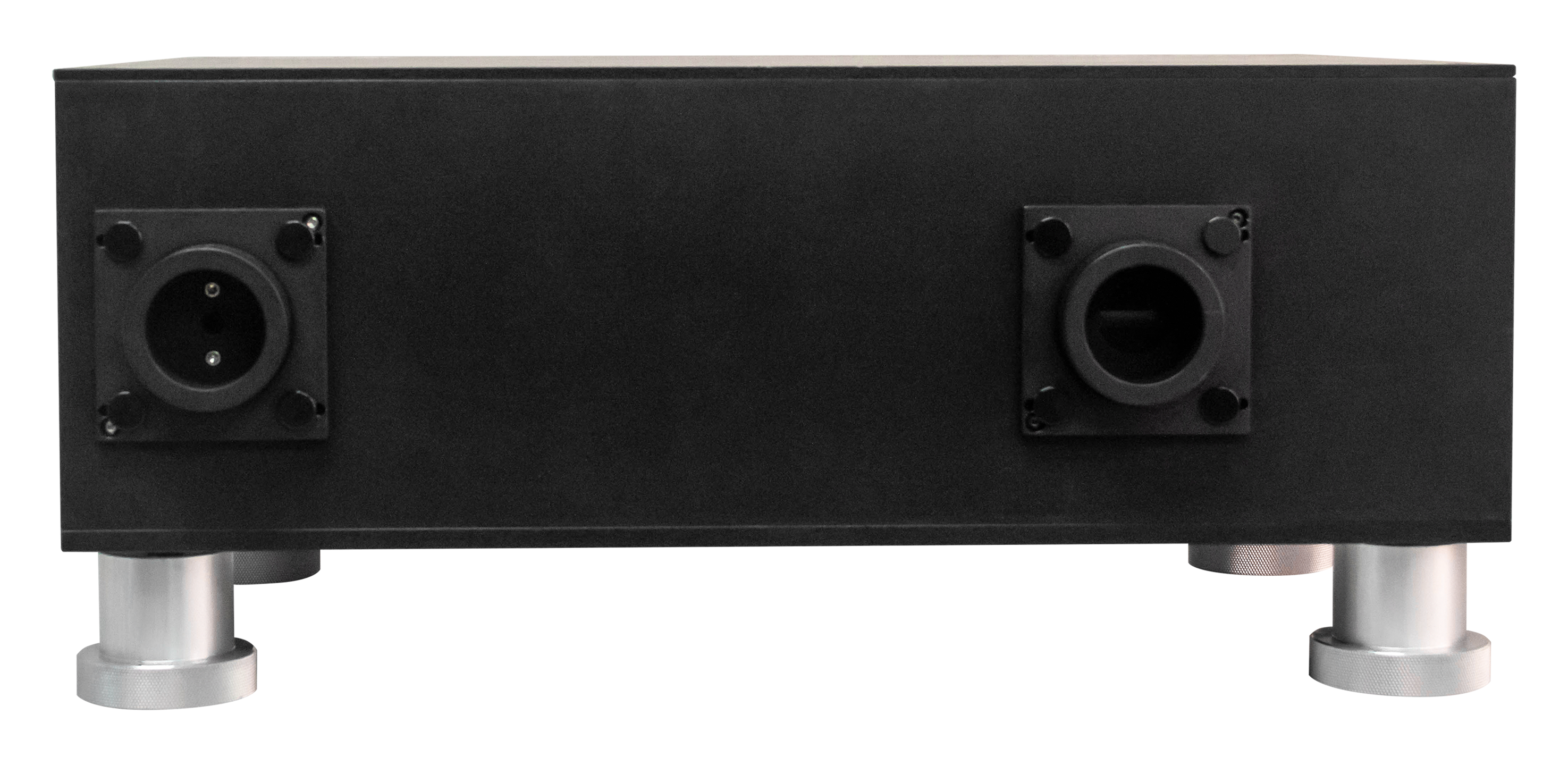

Input port
  • 1
Output port
  • 1
Output beam
  • Free space
Optical Wavelength Range
  • 690 - 1064 nm
Optical Transmission
  • 95%
Input/Output Polarization
  • Linear - Linear
Active Aperture
  • 1.5 x 2 mm2
Static Extinction Ratio
  • > 33 dB
Spectral Resolution (FWHM)
  • < 1.5 nm
Operating Temperature
  • +10°C to +40°C (non-condensing)
Rise/Fall time
  • 160 ns/mm

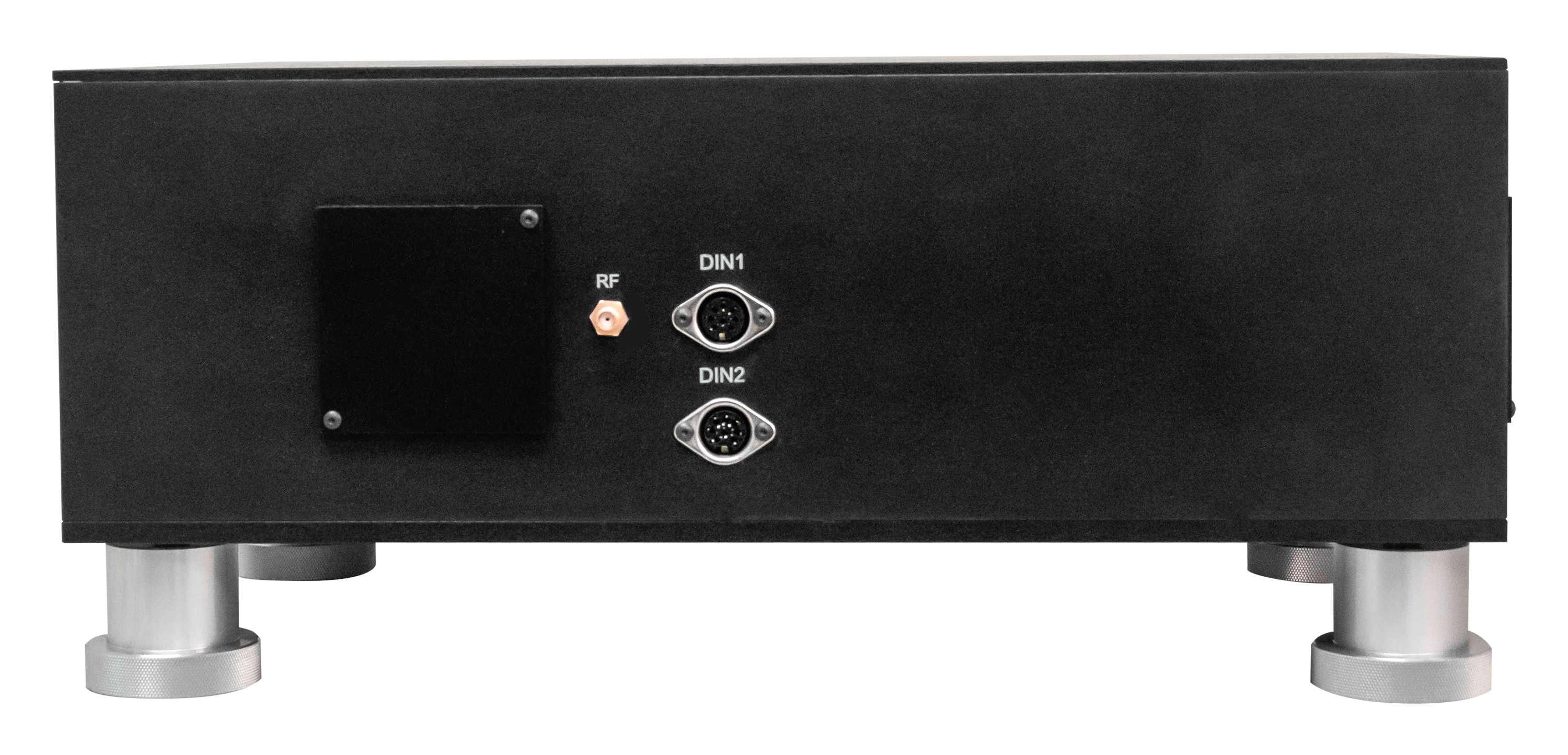

RF Modulation
  • TTL up to 1 MHz, SMA
  • USB
Dimensions (mm)
  • 418 (L) x 416 (W) x 83 (H)
