Overview of Laser Launchers

ISS offers a variety of laser launchers accommodating lasers made by ISS, Omicron, Coherent and other manufacturers. The laser launchers, with automation controlled through the computer, is used on the ISS microscopy systems and can be used to bring the light beam to any commercial laser scanning microscope or spectrometer. The main features include:

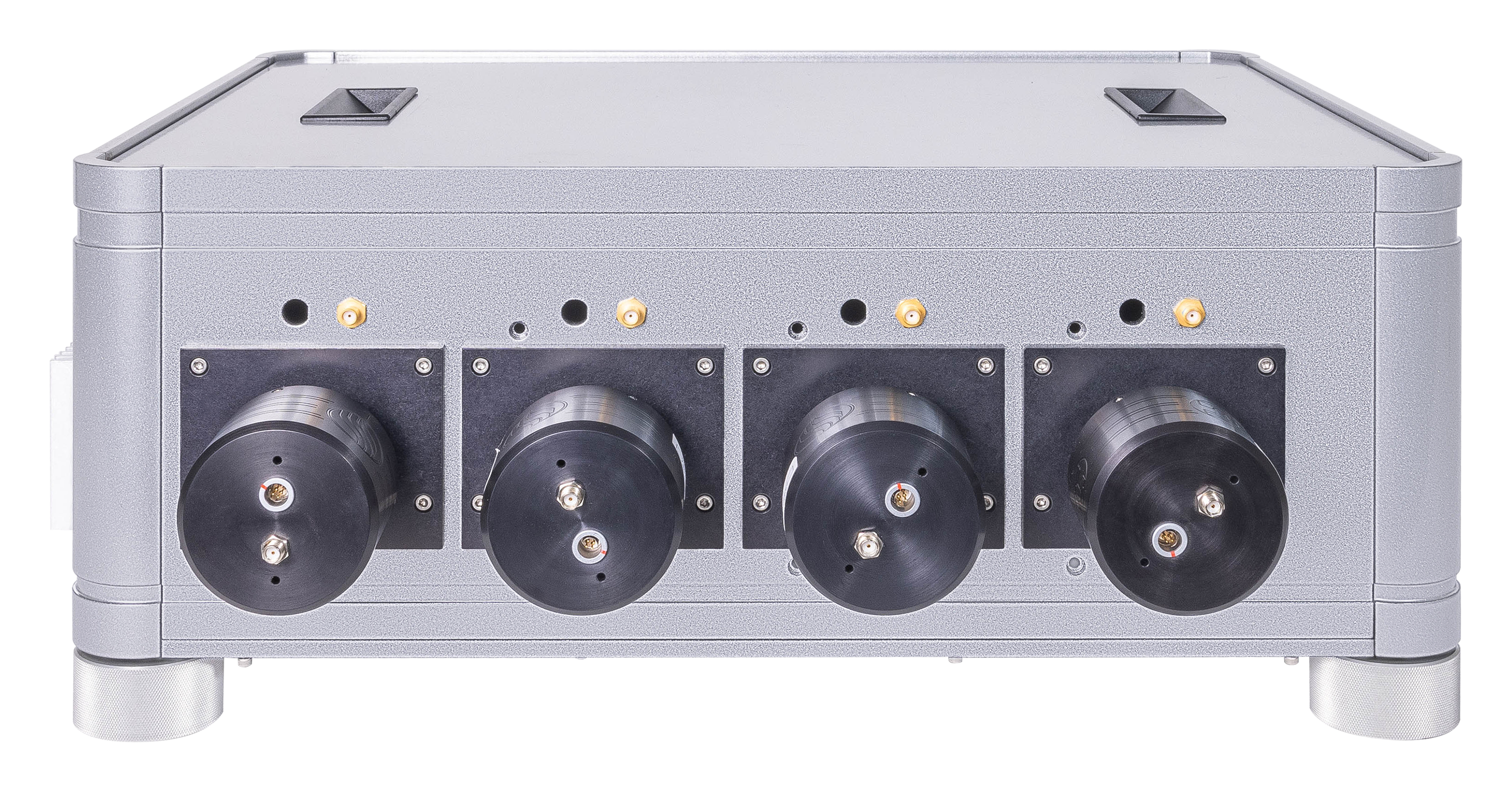

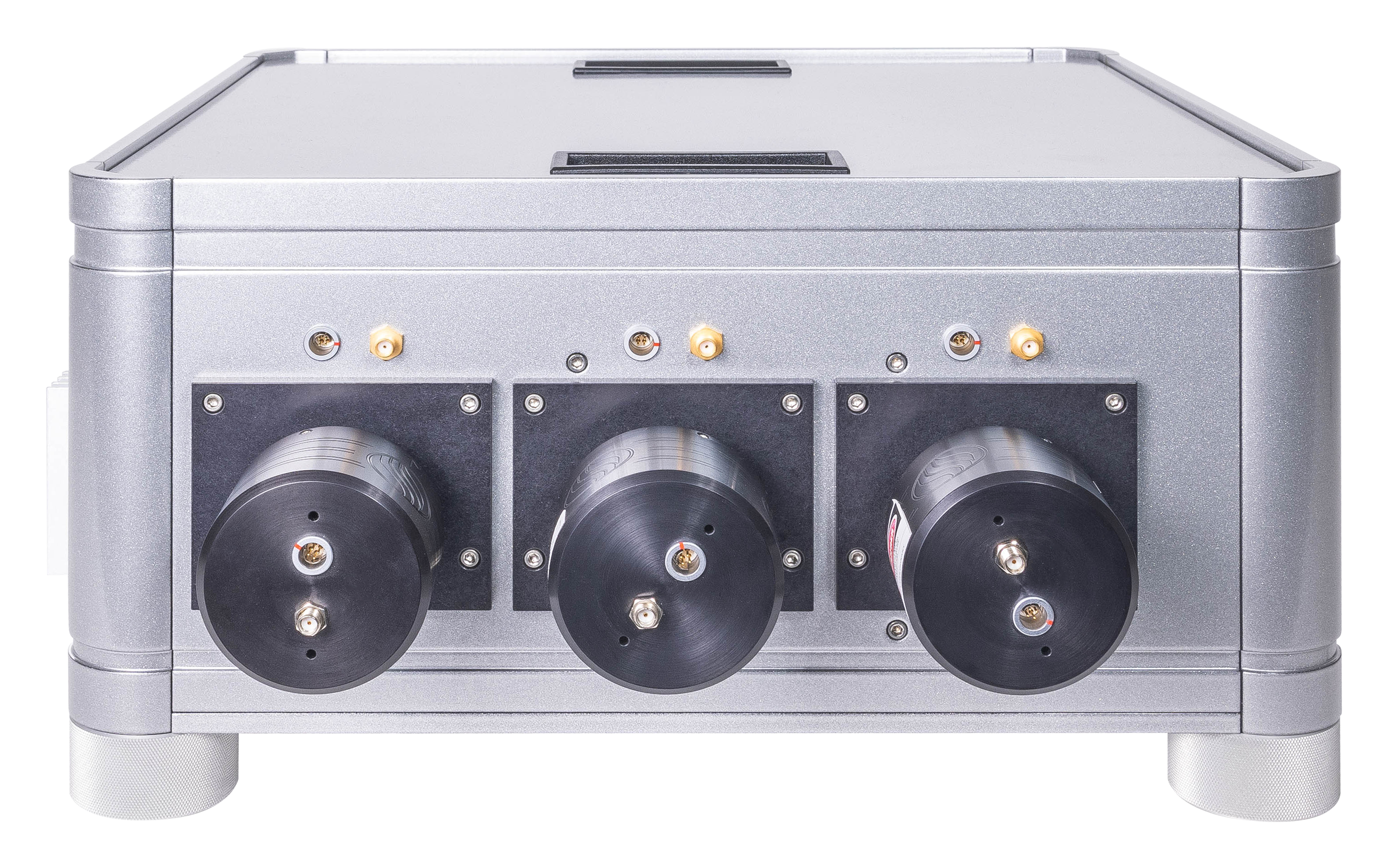

  • Lasers are installed outside the launcher to avoid heat build-up.
  • Selection of the laser beams to use for excitation is through the software activating the shutter mounted in front of each laser.
  • Regulation of each laser intensity is through a variable attenuator controlled by the software.

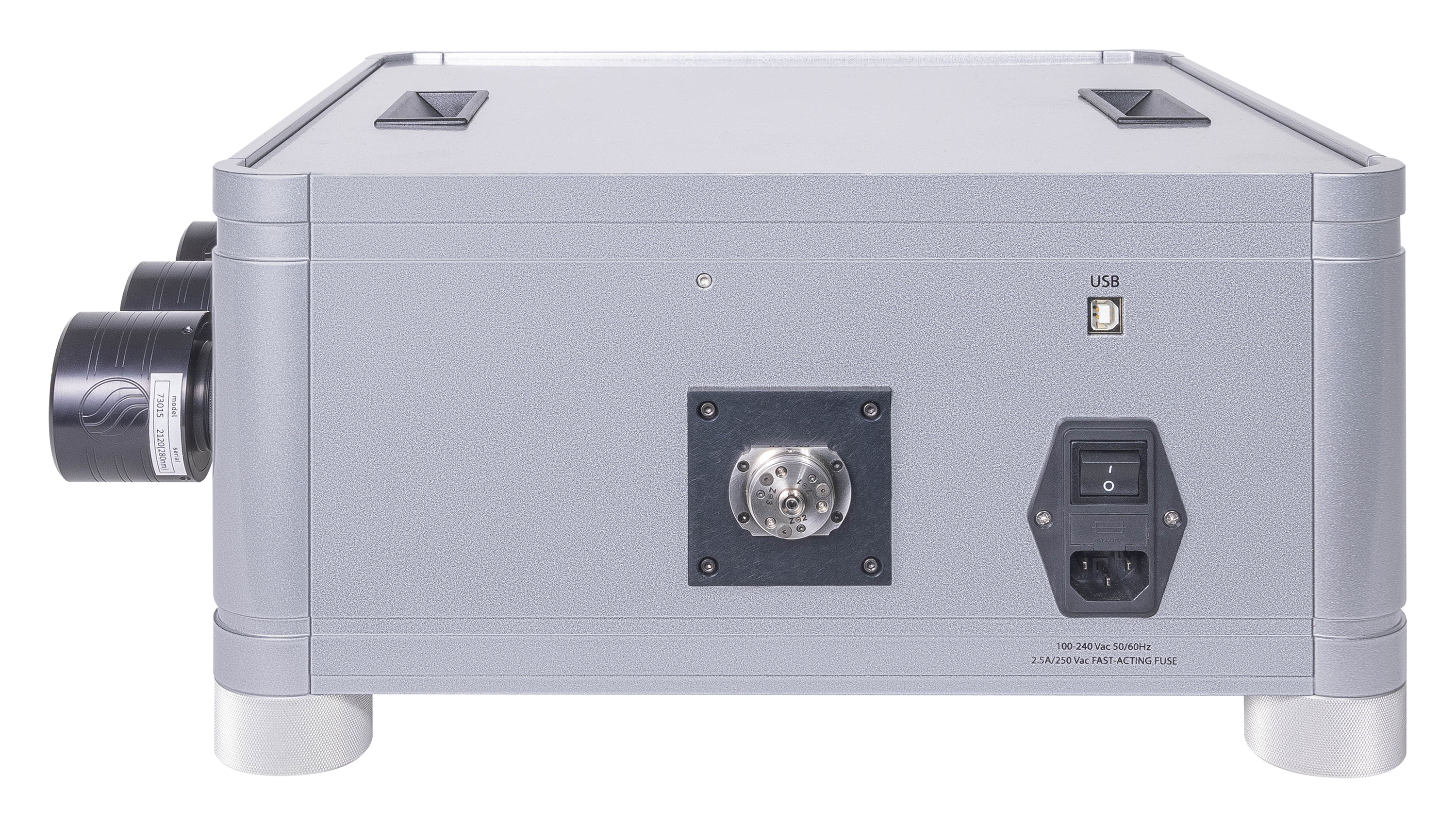

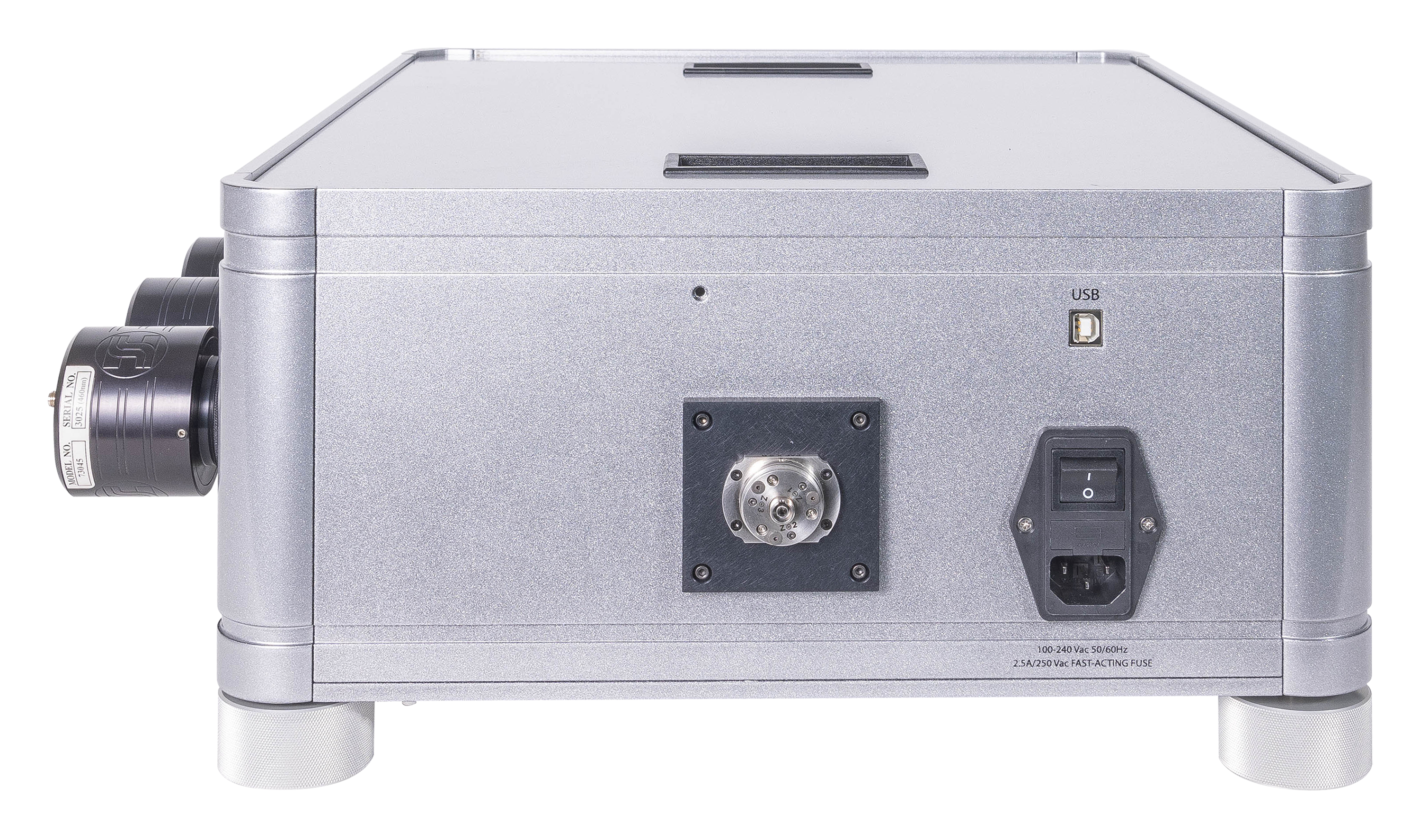

  • The laser launcher controls are through the USB port.

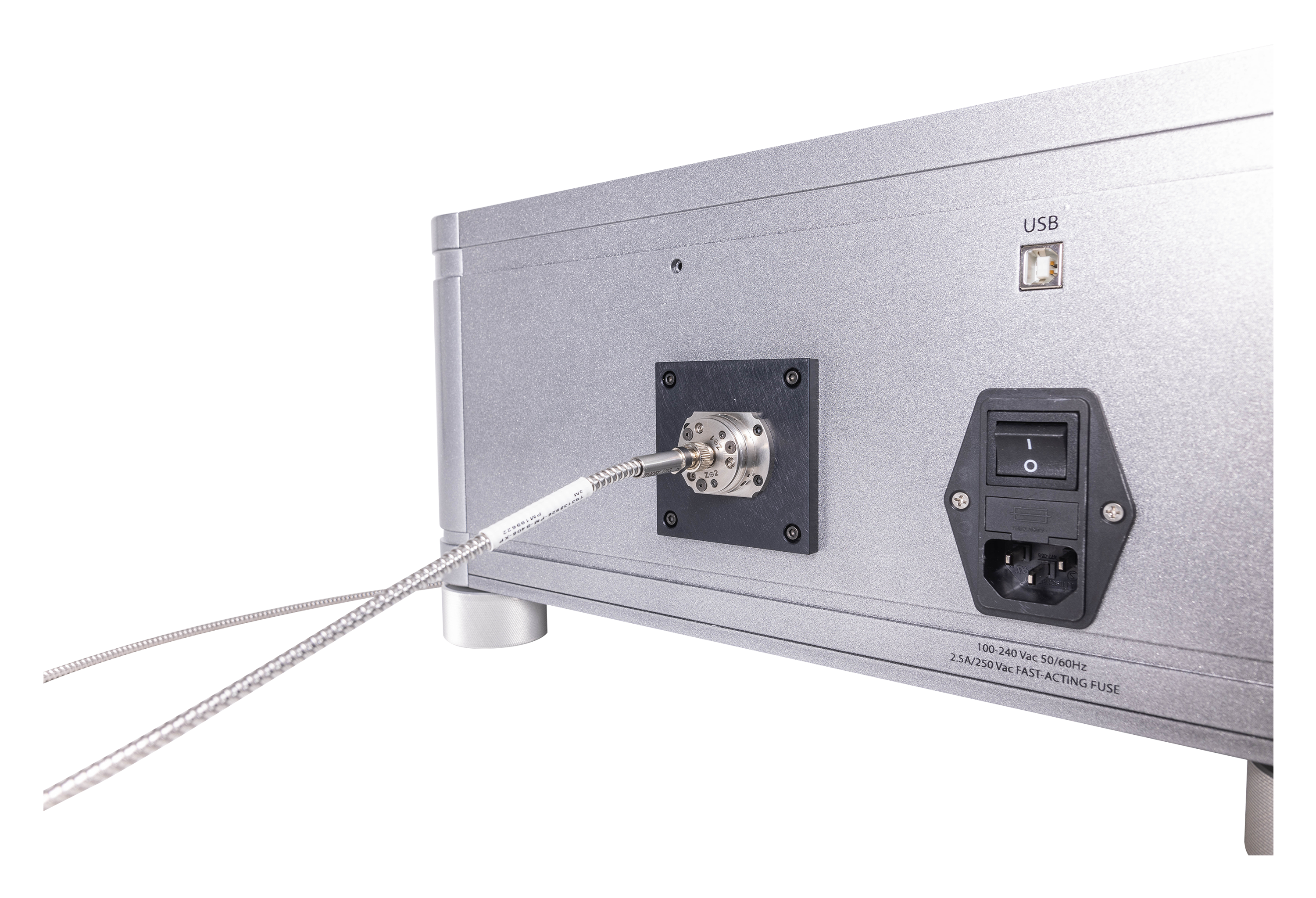

The laser launcher includes an array of dichroic mirrors for the alignment and superposition of the various laser beams; the resulting output beams are focused onto a single-mode fiber, which brings the light beam to the excitation chamber of the microscope. When lasers for both the VIS and NIR regions are used, the output is through two separate fibers (3.5 µm diameter for the VIS light; 7.5 µm for the NIR light). As the standard length of the fiber is 2 m, the laser launcher can be positioned away from the microscope surface table.

Compatible with Q2, and PL1.

Using the laser launcher with a supercontinuum laser

Supercontinuum lasers (also called white lasers) emit radiation at all wavelengths longer than 420 nm.  All the ISS laser launchers can be equipped with a motorized filterwheel that allows for the selection of the desired wavelength using selection optics suitable for single-molecule imaging.  Up to four wavelengths from the supercontinuum laser can be selected through the computer.

Laser launcher and supercontinuum laser for Pulsed Interleaved Excitation (PIE)

Two motorized filterwheels allow for the user to select up to eight wavelengths from the supercontinuum source for PIE applications.

Product Specifications for Laser Launchers

  3-laser 4-laser 6-laser
No. of lasers 3 4 6
Dimensions (mm) 380 (L) x 380 (W) x 200 (H)
Weight (kg) without lasers 16

Power

110/240 V 50/60 Hz
