Overview of XYZ Piezo-controlled Stage

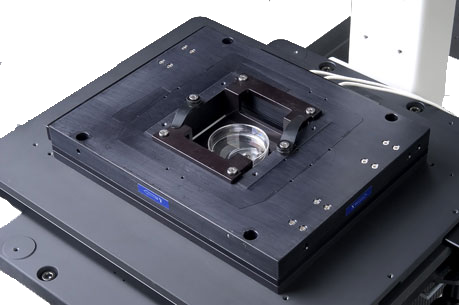

The XYZ PZT is an actuated linear nanopositioning stage of exceptional resolution and stability. The 66 x 66 mm2 hole in the stage center is ideal for applications involving transmitted beams, multiple probes or inverted optics. With its large distance of travel and high stability, the PZT is ideal for the most challenging microscopy and positioning applications. The PZT comes complete with position sensitive detectors for closed loop operation.
Compatible with Alba STED, Alba v5, and Q2.
Product Specifications for XYZ Piezo-controlled Stage
Translation (XY)
- 100 ± 10% μm
Translation (Z)
- 100 ± 10% μm
Voltage Range
- -15 V to +150 V
Resonance Frequency, Unloaded X-Axis
- 350 ± 20% Hz
Resonance Frequency, Unloaded Y-Axis
- 250 ± 20% Hz
Resonance Frequency, Unloaded Z-Axis
- 1000 ± 20% Hz
Stiffness
- 1.0 ± 20% N/μm
Maximum Load (hor/vert)
- 0.5 / 0.25 kg
Mass
- 1000 g
Cable Length
- 180 cm
Cable Connection
- DB-9
